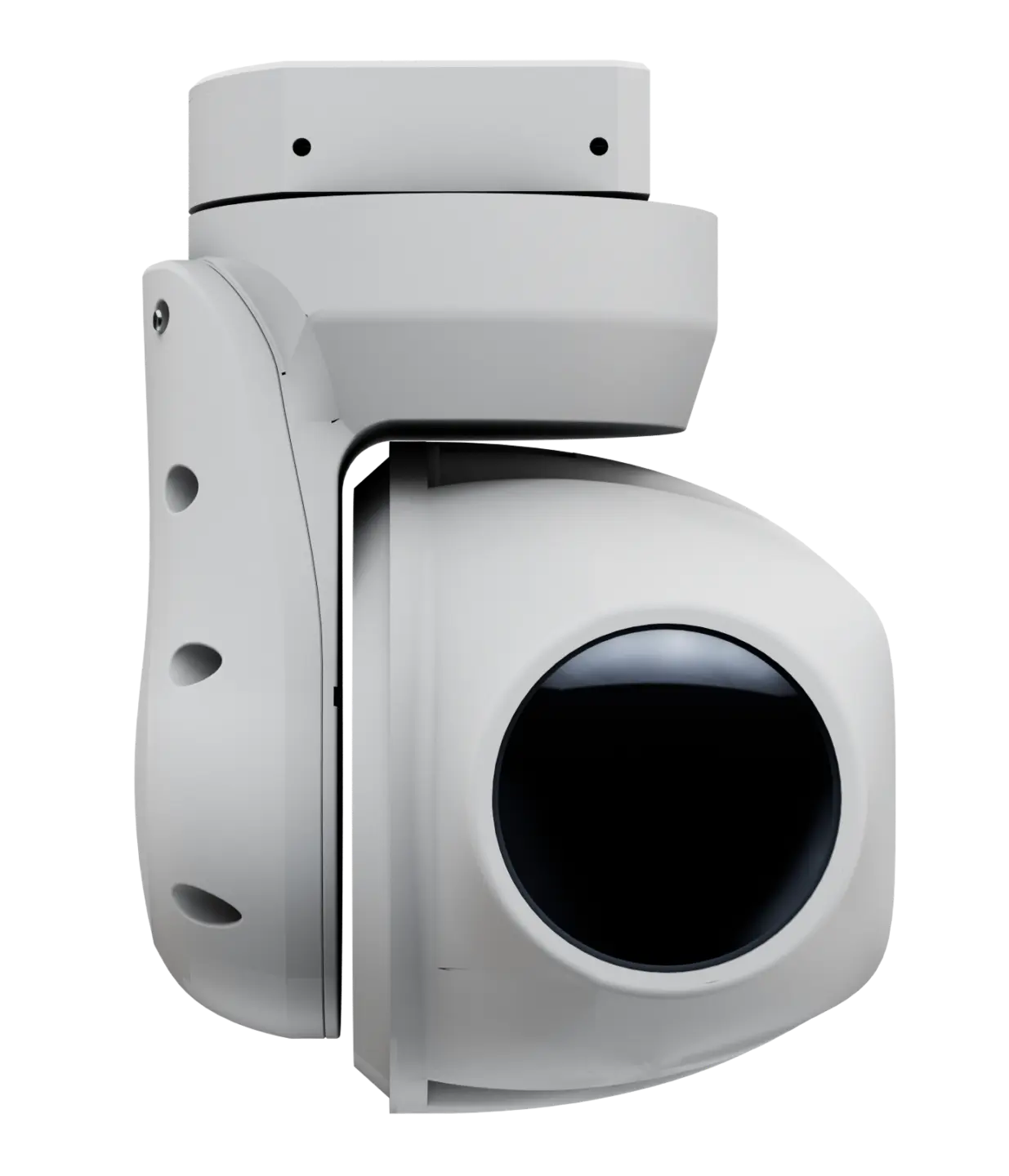

HD40 - XV

An EO only system that features a 112x zoom visible camera

Download Datasheet Request Info
Size
98 x 151mm
Weight
840g
Cameras
EO
Power
15W average, 75W peak consumption. 24VDC regulated input

SWAP

Size (WxH) 98 x 151mm

Weight 840g

Power 15W average, 75W peak consumption. 24VDC regulated input

Pan 360° Continuous

Tilt -80° to 28°

DAY/NIGHT OPTICS

EO Visible 1280 X 720

FOV 47.7° - 0.4°

ZOOM 112x

Software

Encoding Onboard h.264 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software

Onboard GPS

GPS/INS IMU co-located with cameras.

1.5° (typical) total system accuracy

Real time geopointing and geolocation

Onboard GPS receiver or platform provided GPS compatible

  • Play

  • The Ministry of Defense of Ukraine acquired Quantum Systems HQ Vector with the HD40-LV onboard

    The high-tech Vector drone fitted with the HD40-LV flies without almost any noise emission, delivers high-resolution video images from the air via an encrypted data link and supports the ISR operations necessary for border patrol, search-and-rescue, and battlefield surveillance.

    Read More

  • Lockheed Martin's Stalker VXE completes a world record 39-hour flight with the HD40 onboard.

    The record-breaking drone was a production Stalker VXE configured with an external, wing-mounted fuel tank. The 39 hour, 17 minute, and 7 second flight is a record in the Group 2 unmanned aerial system category (5 to 25 kilogram or 11 to 55 pounds) and has been part of the US Special Operations Commmand since 2006.

    Learn More

Accessories

  • External regulator

    External Regulator

    The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

  • Accessory Image Not Available

    HD40/45 Retract

    A retract is often used to protect the HD40/45 during take off and landing. The retract is controlled through SkyLink and is powered by the same 24V rail as the gimbal.
