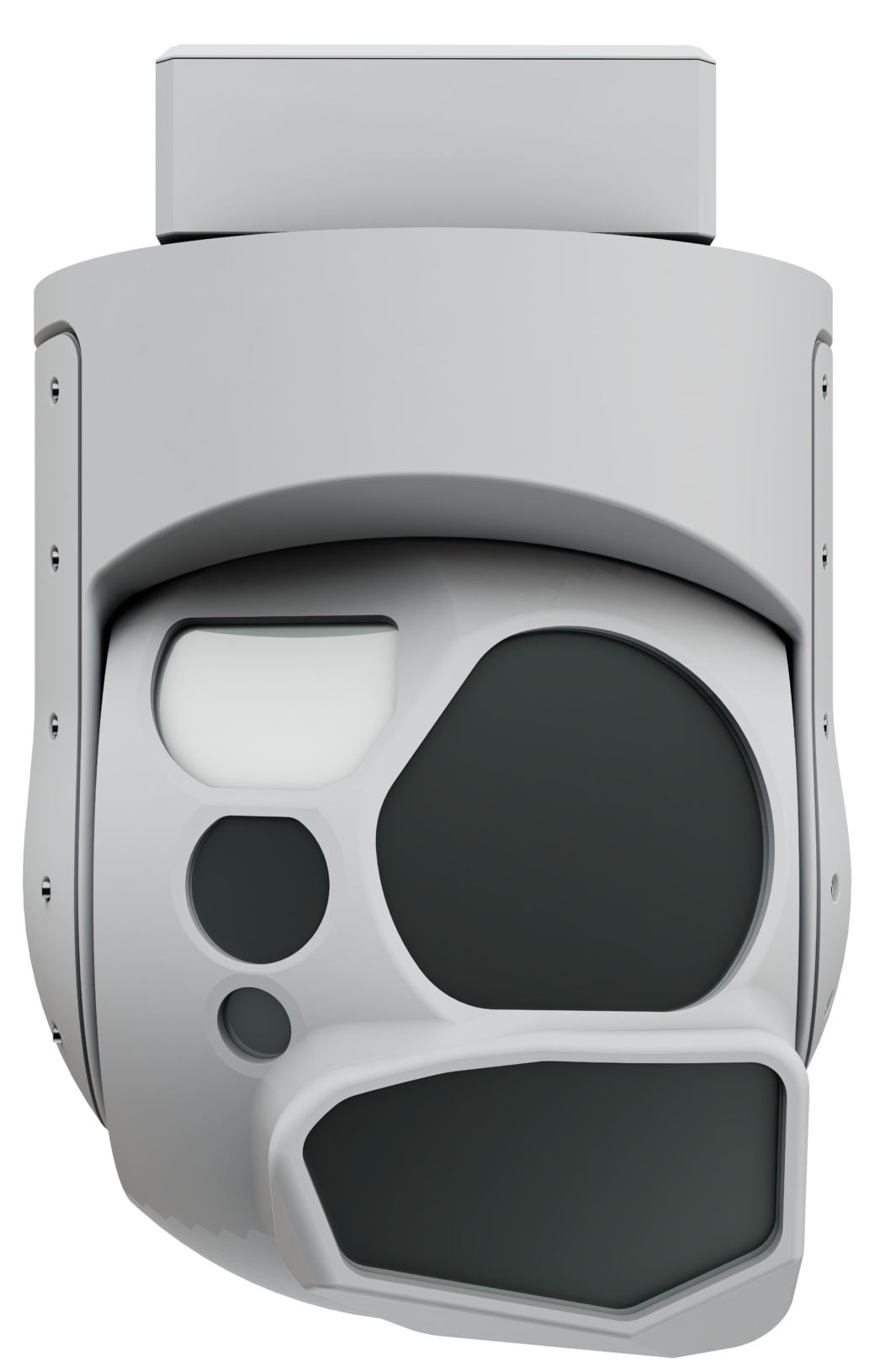

The HD80 is one of Trillium's larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

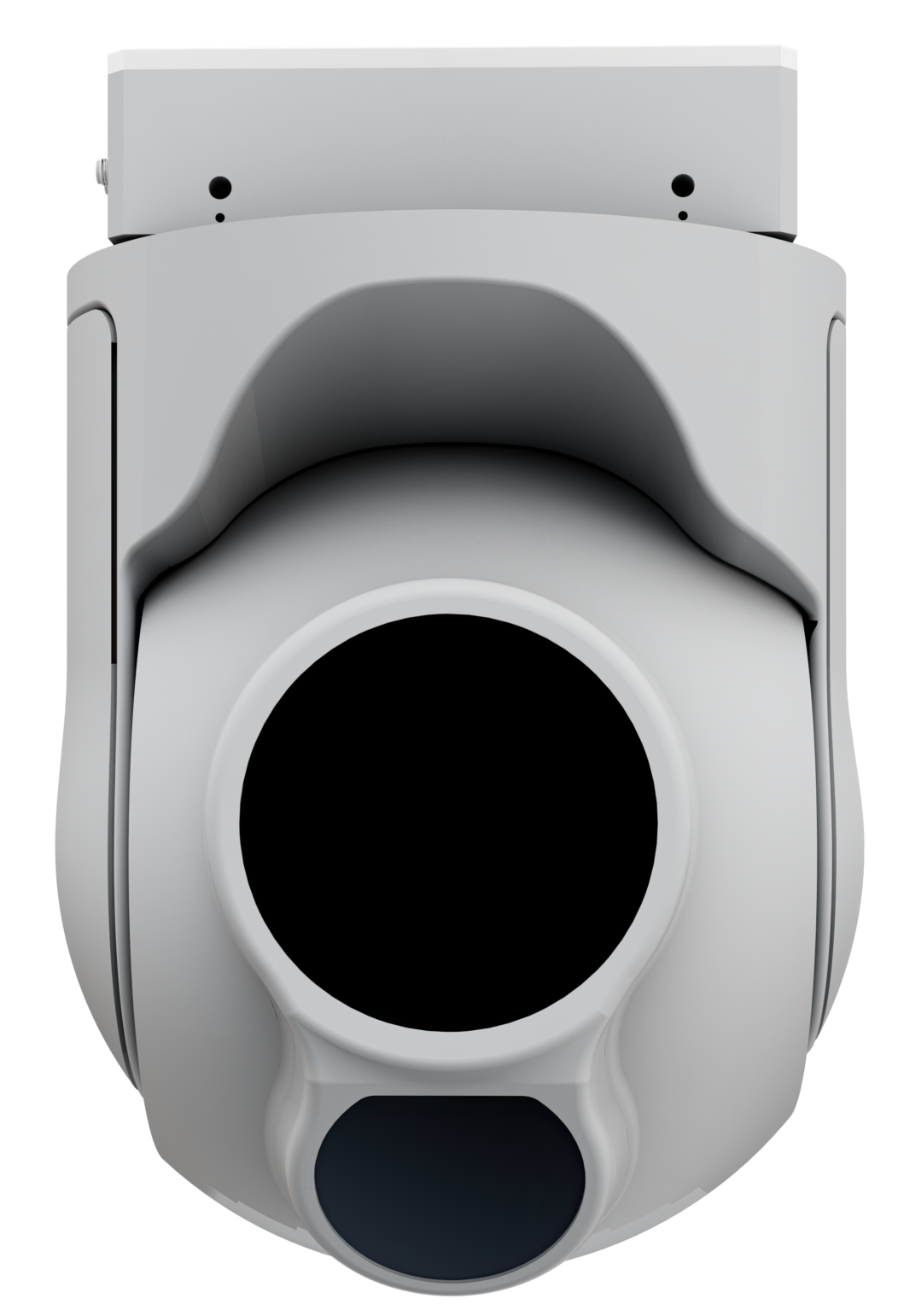

The HD80-VV-510 is an EO only configuration with a 30x optical zoom visible camera and a long focal length spotter EO camera.

HD80-LV-CZ-36X

Request Info

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-LV is an EO/IR configuration with a 36x optical zoom visible camera and a 5x optical zoom uncooled LWIR camera.

HD80-MV-36X

Request Info

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-MV is an EO/IR configuration with a 36x optical zoom visible camera and a 15x optical zoom cooled MWIR camera.

HD80-MV-36X-LP

Request Info

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-MV is an EO/IR configuration with a 36x optical zoom visible camera and a 15x optical zoom cooled MWIR camera. Includes Laser Pointer.

HD80-MV-36X-LRF-LP

Request Info

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-MV is an EO/IR configuration with a 36x optical zoom visible camera and a 15x optical zoom cooled MWIR camera. Includes Laser Range Finder and Laser Pointer.

HD80-MV-600

Request Info

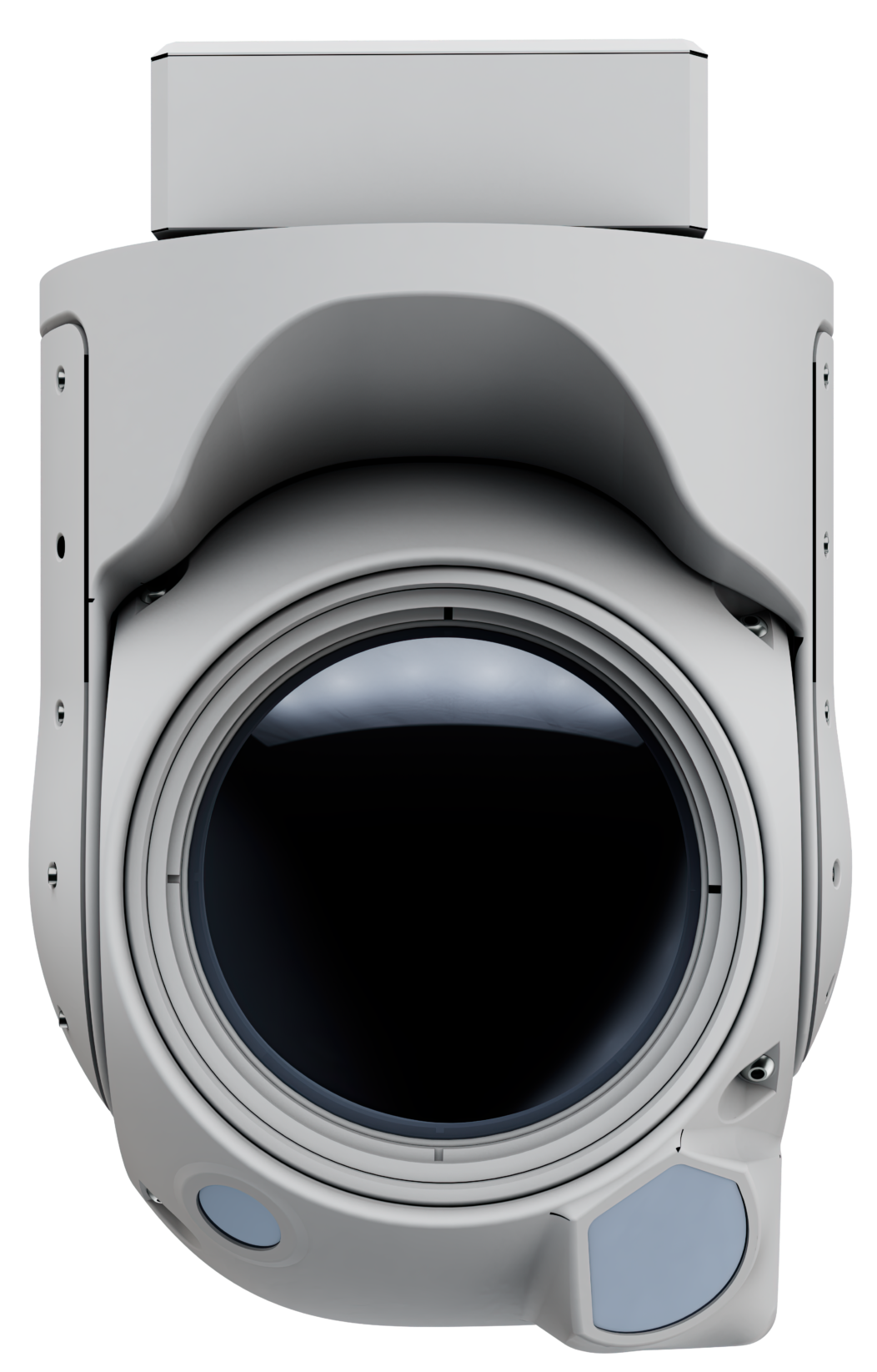

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-MV-600 is an EO/IR configuration with a 10x optical zoom visible camera and a 20x optical zoom cooled MWIR camera.

HD80-MV-600-LP

Request Info

The HD80 is one of Trillium’s larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

The HD80-MV-600 is an EO/IR configuration with a 10x optical zoom visible camera and a 20x optical zoom cooled MWIR camera. Includes Laser Pointer.

HD80-AIM

Request Info

The HD80 is one of Trillium's larger gimbals with an array of payload options including a 20x cooled MWIR camera and a 0.4° EO spotter camera.

Specifically designed for Maritime applications with Wide Area Surveillance capability and integration with AIS receivers.

CAM: 35.3992 -120.6111 ALT 444 m FOV 2.°

IMG: 35.3993 -120.6126 ALT 30 m RNG 63 ft

MODE: GEO

REC: ON

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 252mm / 9.9in

Weight 4270g / 10.4lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 20°

IP Rating IP 54
DAY/NIGHT OPTICS

EO 1 Visible global shutter 30X

FOV 47.7° - 1.8°

EO 2 Visible global shutter Spotter

FOV 0.4°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 244mm / 9.6in

Weight 3850g / 8.5lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 45°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 36X

FOV 57.8° - 1.8°

LWIR LWIR 640 with 5X continuous zoom lens

FOV 29° - 5.9°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
LASER

Target Designator -

Range Finder -

Pointer (N/A)
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 245mm / 9.6in

Weight 4670g / 10.3lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 45°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 36X

FOV 57.8° - 1.8°

MWIR MWIR 640 with 15X continuous zoom lens

FOV 22° - 1.5°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 245mm / 9.6in

Weight 4670g / 10.3lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 45°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 36X

FOV 57.8° - 1.8°

MWIR MWIR 640 with 15X continuous zoom lens

FOV 22° - 1.5°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
LASER

Target Designator -

Range Finder -

Pointer 850nm laser, class IIIB, 50mW power
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 245mm / 9.6in

Weight 4710g / 10.3lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 45°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 36X

FOV 57.8° - 1.8°

MWIR MWIR 640 with 15X continuous zoom lens

FOV 22° - 1.5°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
LASER

Target Designator -

Range Finder 4500 NATO STD

Pointer 830nm laser, class IIIB, 190mW power
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 230mm / 9in

Weight 4900g / 10.8lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 80°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 10X

FOV 54° - 4.9°

MWIR MWIR 640 with 20X continuous zoom lens

FOV 18.2° - 0.9°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 230mm / 9in

Weight 4900g / 10.8lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 80°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 10X

FOV 54° - 4.9°

MWIR MWIR 640 with 20X continuous zoom lens

FOV 18.2° - 0.9°
SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
LASER

Target Designator -

Range FInder -

Pointer 830nm laser, class IIIB, 190mW power
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support

KEY FEATURES

Download Spec Sheet Export Info Integration Docs

SWAP

Size 229mm / 9in

Weight 5370g / 11.9lbs

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 75°

IP Rating IP 54
DAY/NIGHT OPTICS

EO Visible global shutter 36X

FOV 57.8° - 1.8°

MWIR MWIR 640 with 10X continuous zoom lens

FOV 21.7° - 2.2°

NIR NIR 1080p global shutter

FOV 4.5°
SOFTWARE

AI Maritime Boat Detction Speed Boat 10m (30ft) at 2.0 Nautical Mi Vessel 30m (100ft) at 10.0 Nautical Mi

Encoding Onboard h.264/h.265 compression with adjustable bitrate

Zoom 2x digital zoom

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software
ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard L1/L2 GPS receiver support

GPS and heading accepted over serial or Ethernet

Dual GPS heading support
