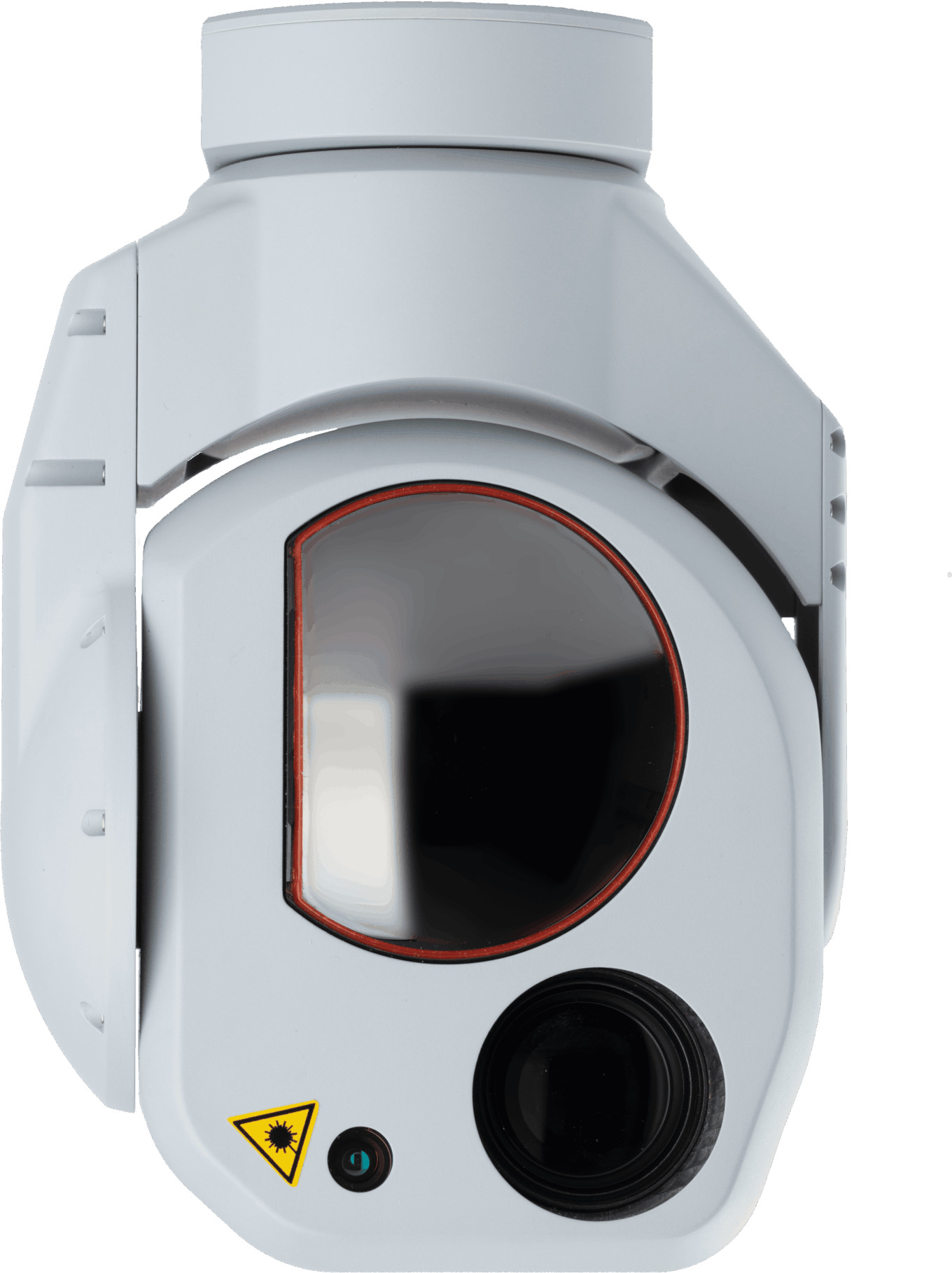

HD45-LV-CZ

The HD45 combines the lightweight and robust design of the HD40 with the imaging capabilities of the HD55.

The HD45-LV-CZ is an exceptional UAV EO/IR gimbal. Crafted with durability and lightweight design in mind, this gimbal excels in capturing stunning visuals from the sky. The HD45 combines the capabilities of visible and LWIR cameras with optical zoom, empowering users to capture detailed imagery with unmatched flexibility. For remarkable precision in geolocation and geopointing, the HD45-LV-CZ offers an optional upgrade for its onboard IMU. By choosing this upgrade, users can achieve an impressive 1-degree accuracy, revolutionizing precise positioning during UAV missions. This best-in-class geolocation and geopointing capability ensures accurate targeting and reliable data collection, elevating the effectiveness of operations.

HD45-LV-CZ-LP

The HD45 combines the lightweight and robust design of the HD40 with the imaging capabilities of the HD55.

The HD45-LV-CZ-LP is a durable and lightweight UAV EO/IR gimbal that sets the standard in high resolution imaging technology. This exceptional gimbal features a comprehensive set of cameras, including both visible and LWIR cameras with optical zoom capabilities, allowing users to capture detailed imagery from varying distances. The HD45-LV-CZ-LP is also equipped with an 850 nm night vision-compatible laser pointer, enhancing visibility in low-light conditions. Designed to withstand the rigors of UAV operations, the HD45-LV-CZ-LP strikes a perfect balance between robustness and lightweight construction. It ensures stability during flight, enabling users to capture steady and clear footage even in challenging conditions.

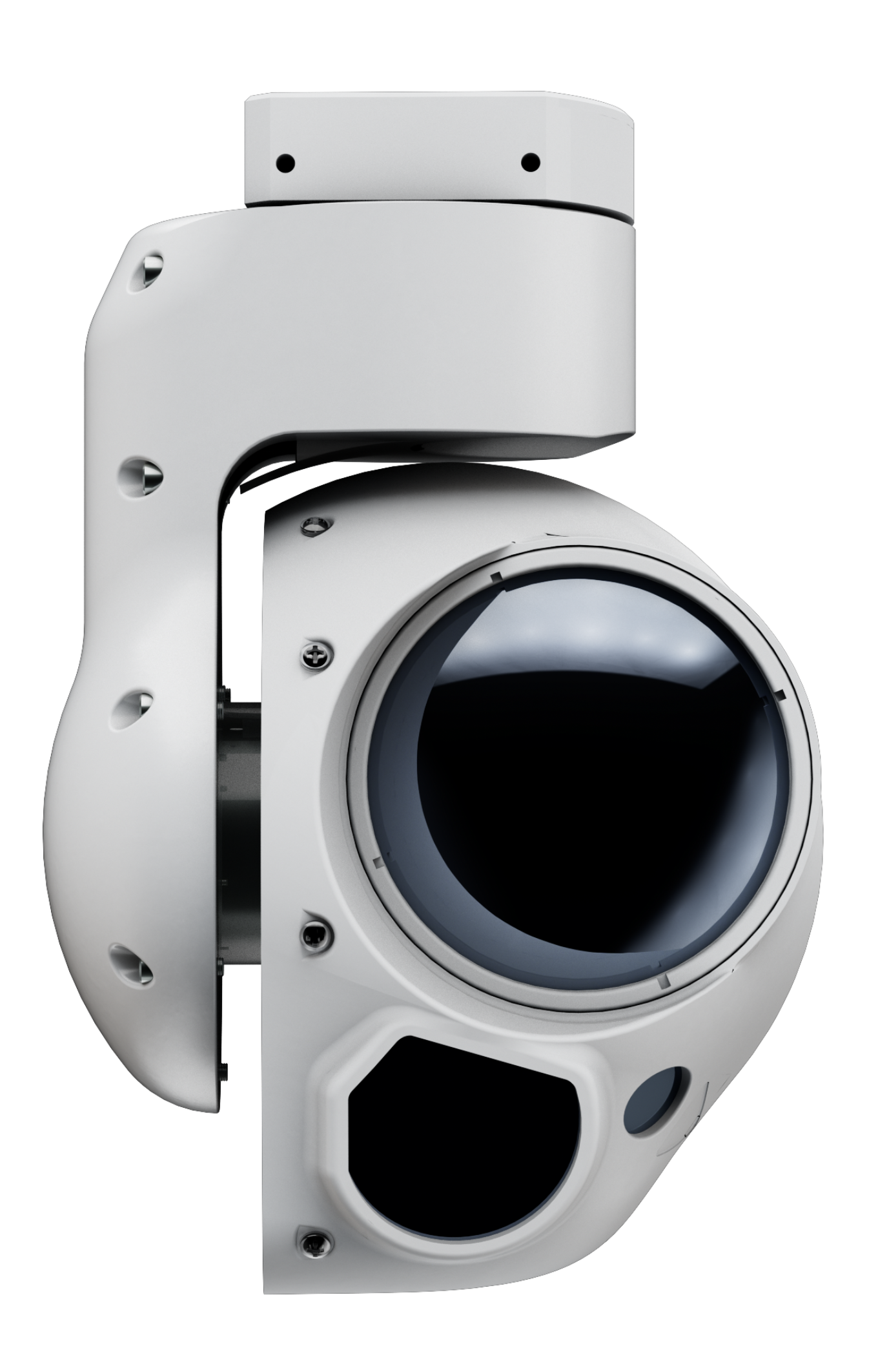

HD45-LV-CZ-GS

The HD45 combines the lightweight and robust design of the HD40 with the imaging capabilities of the HD55.

The HD45-LV-CZ-GS gimbal provides versatility with camera options. Users can choose the 5x optical zoom uncooled LWIR camera, which enables users to capture thermal imagery with enhanced detail. Alternatively, users can opt for the 10x optical zoom visible camera, offering excellent zoom capabilities for capturing high-quality visible spectrum visuals. Built to withstand demanding UAV operations, the HD45-LV-CZ-GS strikes the perfect balance between robustness and lightweight design. Its stability during flight ensures steady and clear footage, even in challenging environments or turbulent conditions.

CAM: 35.3992 -120.6111 ALT 444 m FOV 2.°
IMG: 35.3993 -120.6126 ALT 30 m RNG 63 ft
MODE: GEO
REC: ON
  • SWaP

    Size (WxH) 134 x 197mm

    Weight 1280g

    Power 15W average, 75W peak consumption. 24VDC regulated input

    Pan 360° Continuous

    Tilt -80° to 42°

  • DAY/NIGHT OPTICS

    EO Visible 1280 x 720

    FOV 13.7° - 4.6°

    ZOOM 8X

    IR LWIR 640 x 512

    FOV 29° - 5.9°

    ZOOM 10X

  • SOFTWARE

    Encoding Onboard h.264 compression with adjustable bitrate

    Stabilization Onboard electronic

    Tracking Onboard scene tracking

    Metadata MISB-compliant output including KLV metadata

    Upgrades Field upgradeable software

  • ONBOARD GPS

    GPS/INS IMU co-located with cameras. 1.5° (typical) total system accuracy

    Real time geopointing and geolocation

    Attitude, velocity and position computed at 200Hz

    Onboard GPS receiver or platform provided GPS compatible

    Dual GPS heading support

  • SWaP

    Size (WxH) 133 x 197mm

    Weight 1350g

    Power 15W average, 75W peak consumption. 24VDC regulated input

    Pan 360° Continuous

    Tilt -80° to 42°

  • DAY/NIGHT OPTICS

    EO Visible 1280 x 720

    FOV 54° - 4.9°

    ZOOM 20X

    IR LWIR 640 x 512

    FOV 29° - 5.9°

    ZOOM 10X

  • SOFTWARE

    Encoding Onboard h.264 compression with adjustable bitrate

    Stabilization Onboard electronic

    Tracking Onboard scene tracking

    Metadata MISB-compliant output including KLV metadata

    Upgrades Field upgradeable software

  • LASER

    Target Designator -

    Range Finder -

    Pointer 850nm laser, class IIIB, 50mW power

  • ONBOARD GPS

    GPS/INS IMU co-located with cameras. 1.5° (typical) total system accuracy

    Real time geopointing and geolocation

    Attitude, velocity and position computed at 200Hz

    Onboard GPS receiver or platform provided GPS compatible

    Dual GPS heading support

  • SWaP

    Size (WxH) 133 x 197mm

    Weight 1350g

    Power 15W average, 75W peak consumption. 24VDC regulated input

    Pan 360° Continuous

    Tilt -80° to 42°

  • DAY/NIGHT OPTICS

    EO Visible 1280 x 720

    FOV 54° - 4.9°

    ZOOM 20X

    IR LWIR 640 x 512

    FOV 29° - 5.9°

    ZOOM 10X

  • SOFTWARE

    Encoding Onboard h.264 compression with adjustable bitrate

    Stabilization Onboard electronic

    Tracking Onboard scene tracking

    Metadata MISB-compliant output including KLV metadata

    Upgrades Field upgradeable software

  • ONBOARD GPS

    GPS/INS IMU co-located with cameras. 1.5° (typical) total system accuracy

    Real time geopointing and geolocation

    Attitude, velocity and position computed at 200Hz

    Onboard GPS receiver or platform provided GPS compatible

    Dual GPS heading support

  • The HD45 selected for Anduril's Ghost, An Intelligent VTOL Group II sUAS

    This high-performance, 4.5-inch class stabilized EO/IR camera system is ideal for real-time intelligence and reconnaissance missions.

    Learn More
  • ArgenTech Soultions uses the HD45 EO/IR camera onboard their FireEye UAS

    The HD45 EO/IR camera provides real-time fire line visual and infrared mapping while checking for new fires caused by lightning. The use of UAS provides the fire service a unique tool to help reduce the risk for manned aviation assets when visibility is severely degraded.

    Learn More

Accessories

  • External regulator

    External Regulator

    The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

  • Accessory Image Not Available

    HD40/45 Retract

    A retract is often used to protect the HD40/45 during take off and landing. The retract is controlled through SkyLink and is powered by the same 24V rail as the gimbal.
