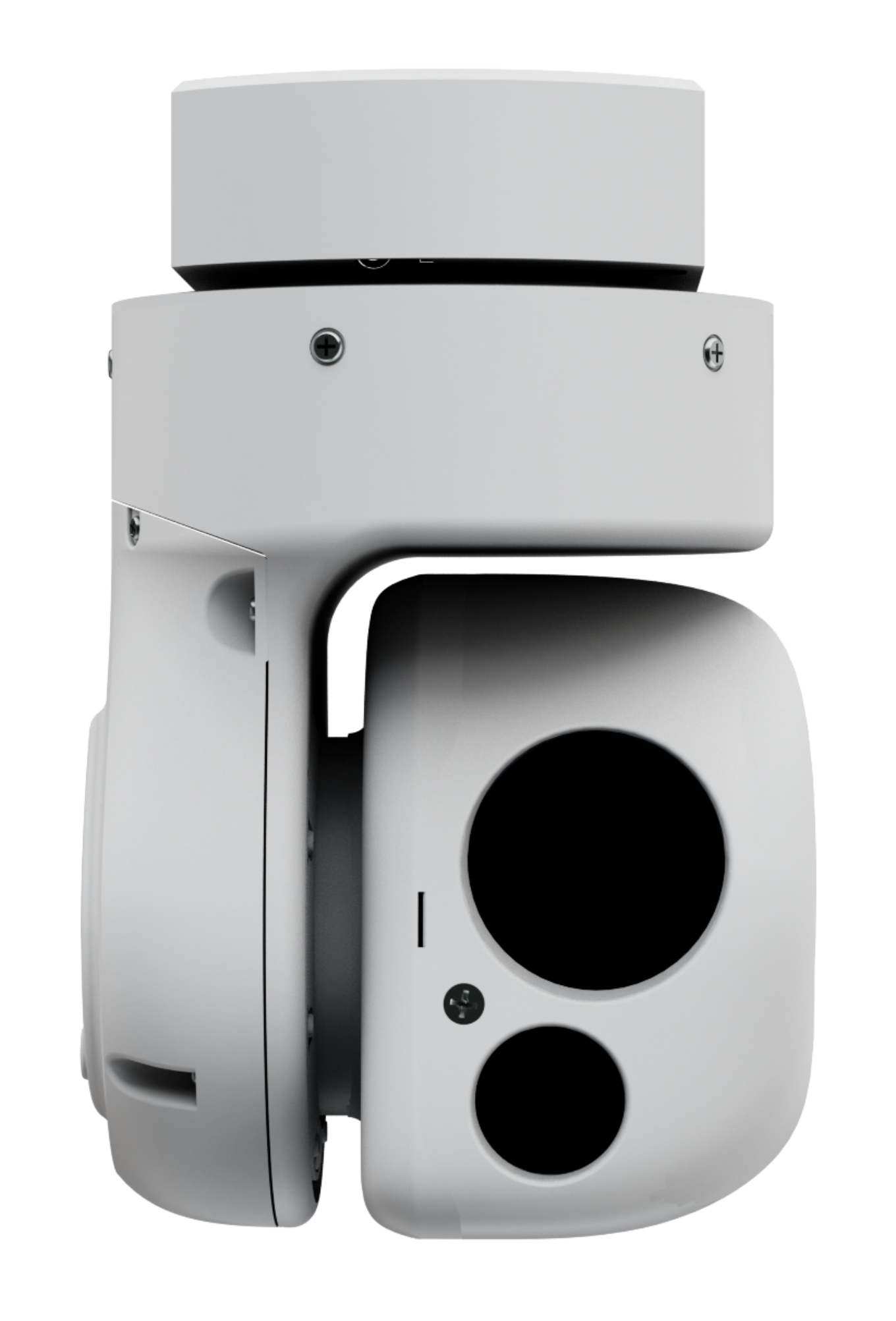

The HD25 is one of the smallest gimbals available without compromising capability, offering advanced features such as geopointing and h.264 video encoding.

As Trillium's pioneering product, the incorporation of technology typically found in larger systems was the ultimate challenge. The deliberately designed HD25 to holds the same capabilities expected in 8-10" sized systems offering smaller airframes a competitive edge. The HD25-XV is an EO only configuration with a 3x optical zoom visible camera.

The HD25 is one of the smallest gimbals available without compromising capability, offering advanced features such as geopointing and h.264 video encoding.

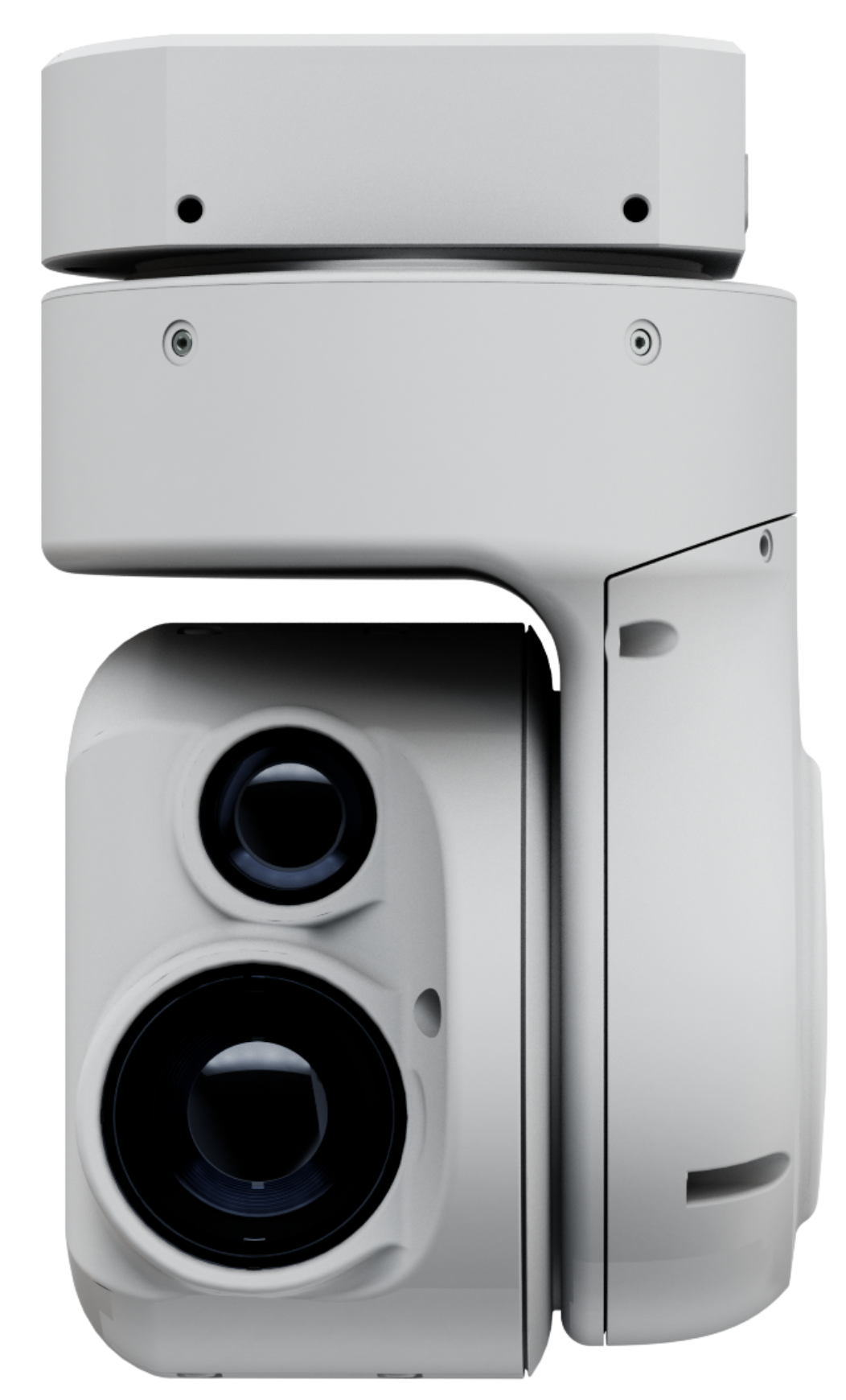

As Trillium's pioneering product, the incorporation of technology typically found in larger systems was the ultimate challenge. The deliberately designed HD25 to holds the same capabilities expected in 8-10" sized systems offering smaller airframes a competitive edge. The HD25-LV is an EO/IR configuration with a 3x optical zoom visible camera and a fixed focal length uncooled LWIR camera.

CAM: 35.3992 -120.6111 ALT 444 m FOV 2.°
IMG: 35.3993 -120.6126 ALT 30 m RNG 63 ft
MODE: GEO
REC: ON
  • SWAP

    Size 76mm

    Weight 340g

    Power 10W average, 75W peak consumption. 24VDC regulated input

    Pan 360° Continuous

    Tilt -80° to 42°

    IP Rating IP 54

  • DAY/NIGHT OPTICS

    EO Visible rolling shutter 3X

    FOV 13.7° - 4.6°

  • SOFTWARE

    Encoding Onboard h.264 compression with adjustable bitrate

    Stabilization Onboard electronic

    Tracking Onboard scene tracking

    Metadata MISB-compliant output including KLV metadata

    Upgrades Field upgradeable software

  • ONBOARD GPS

    GPS/INS IMU co-located with cameras. 1.5° (typical) total system accuracy

    Real time geopointing and geolocation

    Attitude, velocity and position computed at 200Hz

    Onboard GPS receiver

    GPS and heading accepted over serial or Ethernet

    Dual GPS heading support

  • SWAP

    Size 76mm

    Weight 350g

    Power 10W average, 75W peak consumption. 24VDC regulated input

    Pan 360° Continuous

    Tilt -80° to 42°

    IP Rating IP 54

  • DAY/NIGHT OPTICS

    EO Visible rolling shutter 3X

    FOV 13.7° - 4.6°

    LWIR LWIR 640 with 18mm lens

    FOV 24.1°

  • SOFTWARE

    Encoding Onboard h.264 compression with adjustable bitrate

    Stabilization Onboard electronic

    Tracking Onboard scene tracking

    Metadata MISB-compliant output including KLV metadata

    Upgrades Field upgradeable software

  • ONBOARD GPS

    GPS/INS IMU co-located with cameras. 1.5° (typical) total system accuracy

    Real time geopointing and geolocation

    Attitude, velocity and position computed at 200Hz

    Onboard GPS receiver

    GPS and heading accepted over serial or Ethernet

    Dual GPS heading support

  • Albers Aerospace Uses the HD25 Onboard their Sandstorm UAS

    The Sandstorm UAS program was developed to provide the US Air Force (or any UAV operator) with a cost-conscious training alternative to using full-sized (and expensive) operational UAVs. This Group 2 UAS requires a feature-rich imaging system gimbal that is light, powerful, and mission proven.

    Read More

Accessories

  • External regulator

    External Regulator

    The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

  • HD25 Retract

    HD25 Retract

    A retract is often used to protect the HD25 during landing. The retract is controlled through SkyLink and powered by the same 24V rail as the gimbal.
