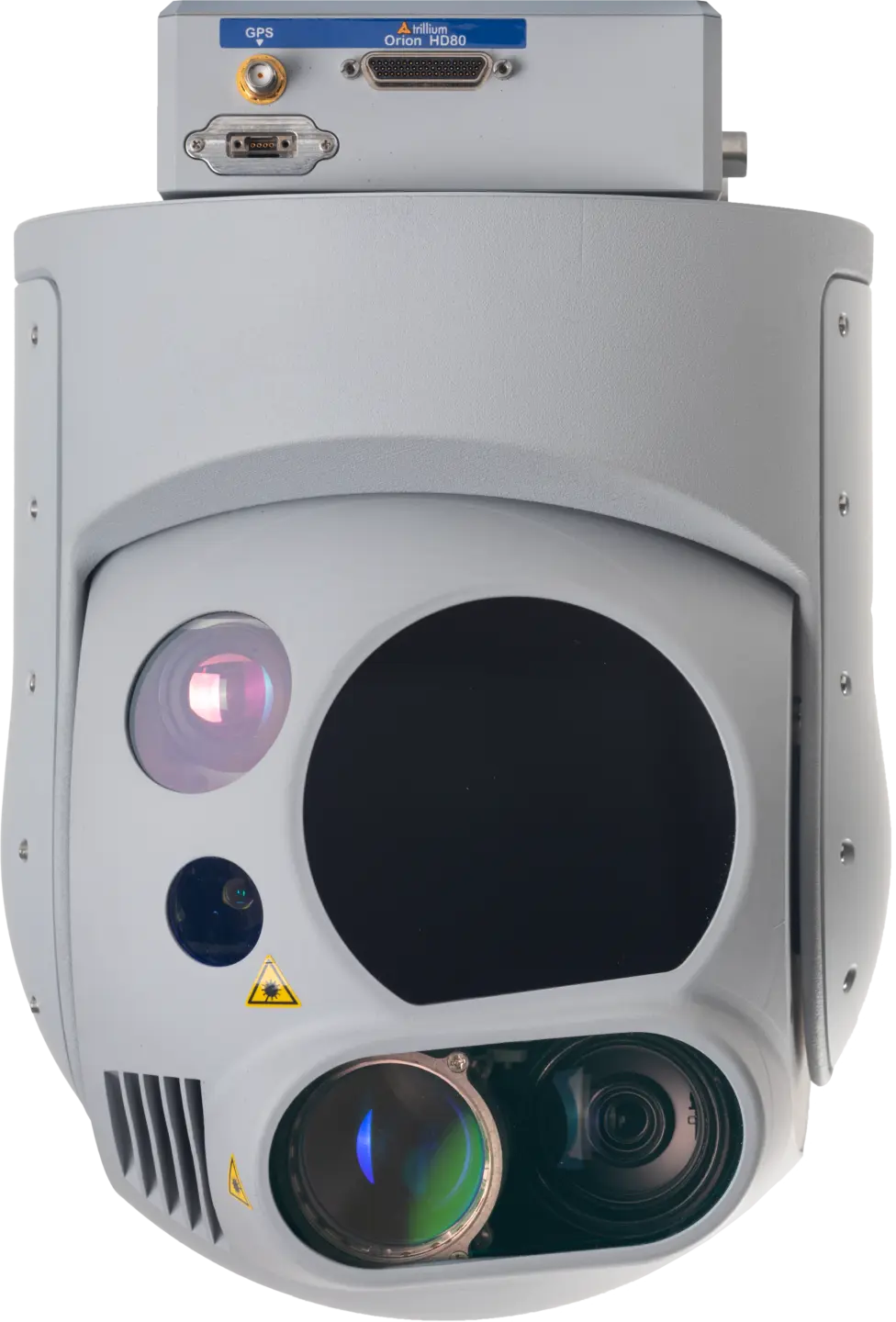

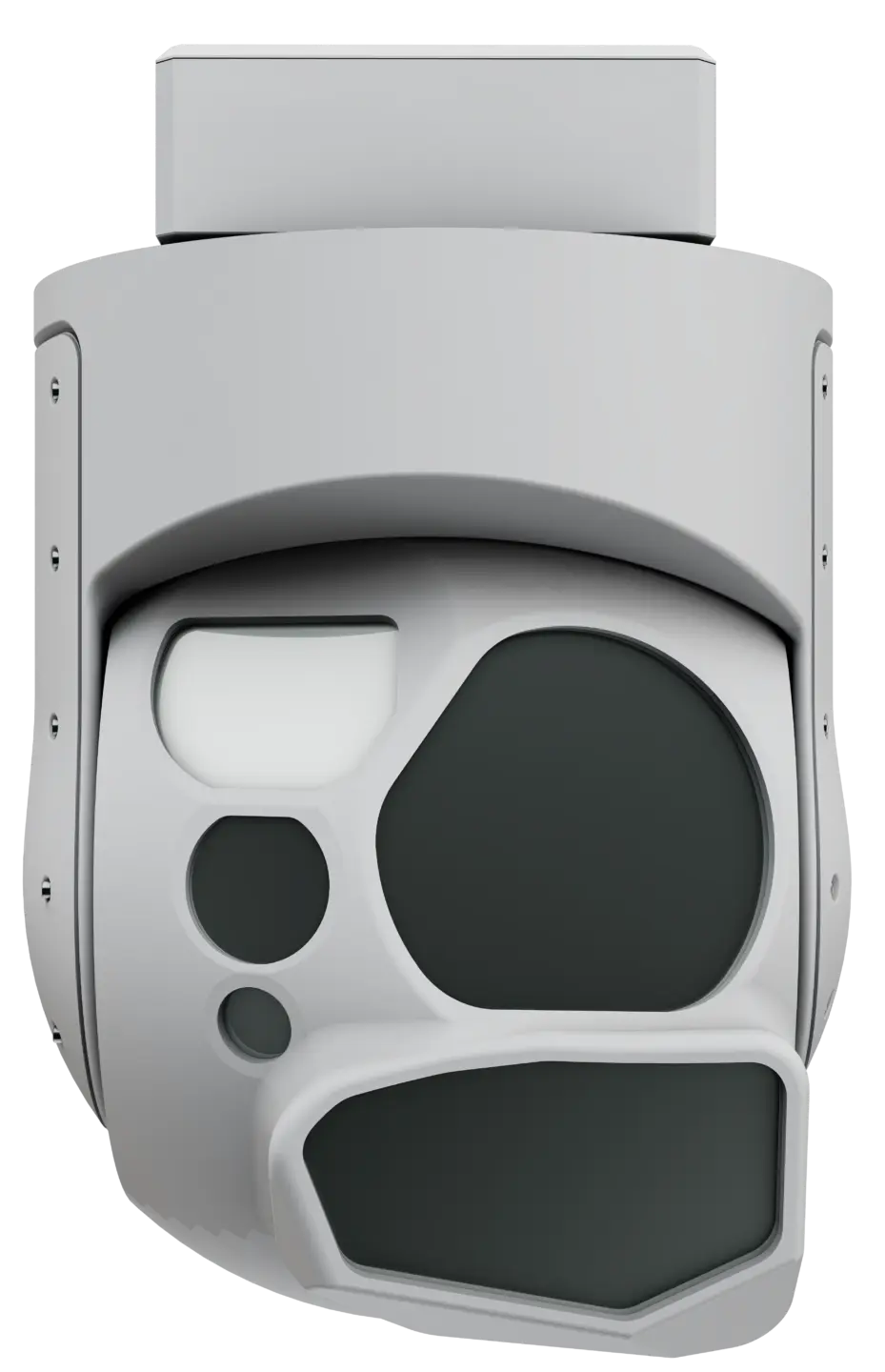

HD80 - MVS

Purpose-built for advanced programmatic needs, this system features an advanced combination of MWIR, Visible, and SWIR sensors. It provides the most capabilities available and a full suite of laser options.

Download Datasheet Request Info
Size
191 x 276mm
Weight
5350g
Cameras
MWIR EO SWIR
Power
25W average Power, 100W Peak
Laser
Laser Pointer
Laser Designator
Laser Range Finder

HD80-MVS SWAP

Size (WxH) 191 x 276mm

Weight 5350g

Power 25W average Power, 100W Peak

Pan 360°

Tilt -90° to 60°

DAY/NIGHT OPTICS

EO Visible 1920 x 1080

FOV 57.8° - 0.3°

ZOOM 192X

MWIR 640 x 512

FOV 21.7° - 0.8°

ZOOM 28X

SWIR 640 x 512

FOV 5.7° - 2.9°

ZOOM 2X

LASERS

Pointer 830-850nm laser, Class IIIB, 190mW

Range Finder 1550nm Laser, Class I

Designator 1064nm Laser, Class IV, STANAG/NATO - 6x BEX

SOFTWARE

Encoding Onboard h.264/h.265 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software

ONBOARD GPS

GPS/INS IMU co-located with cameras 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard GPS receiver or platform provided GPS compatible

Dual GPS heading support
