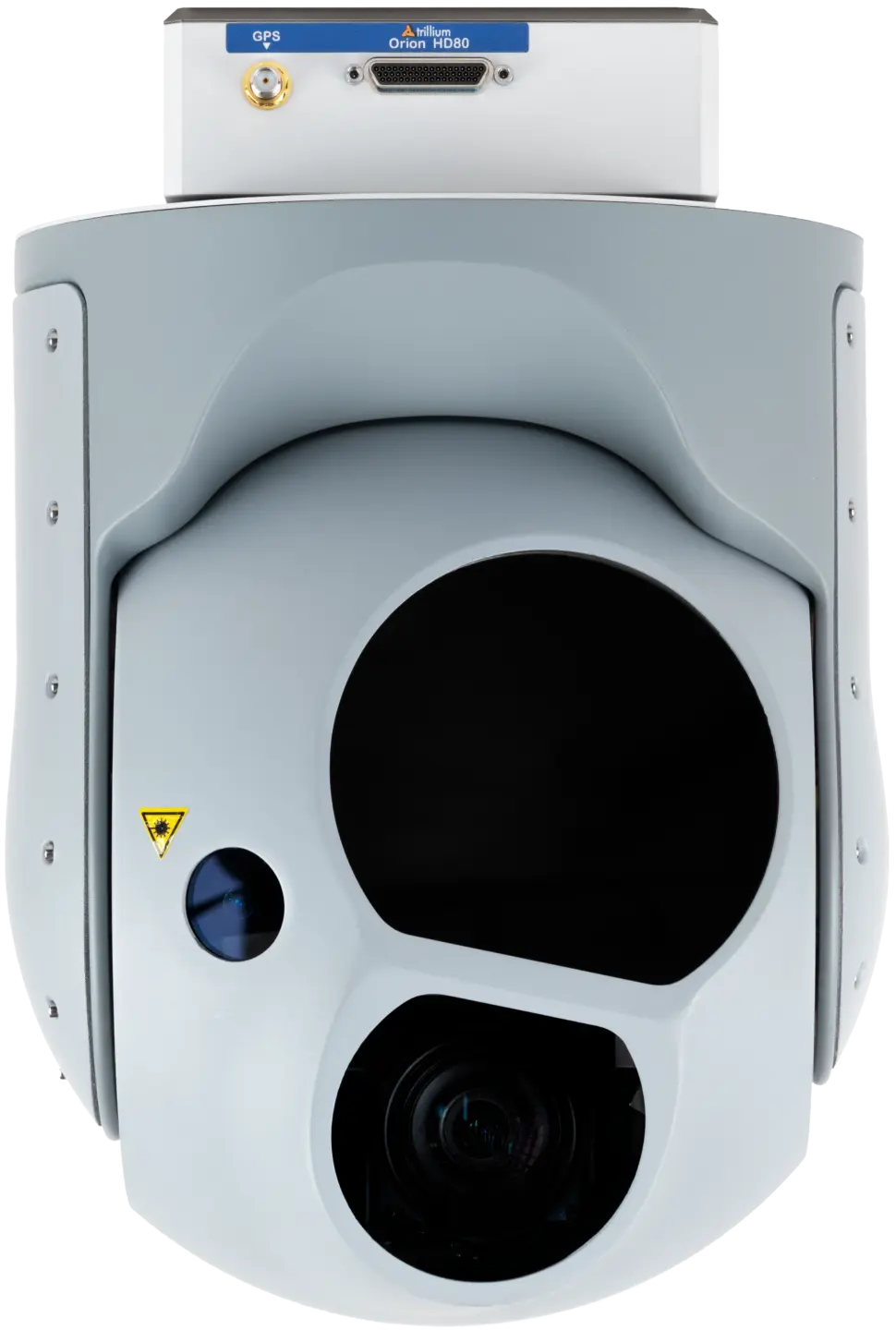

HD80 - MV

This system strikes the best balance of day/night options, featuring a 132x visible zoom and a 40x MWIR zoom.

Download Datasheet Request Info
Size
191 x 276mm
Weight
4700g
Cameras
MWIR EO
Power
25W average, 100W peak consumption

SWAP

Size (WxH) 191 x 276mm

Weight 4700g

Power 25W average, 100W peak consumption

Pan 360° Continuous

Tilt -80° to 45°

DAY/NIGHT OPTICS

EO Visible 1920 x 1080

FOV 40.4° - 0.3°

ZOOM 132X

MWIR MWIR 640 x512

FOV 21.7° - 0.8°

ZOOM 40X

SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software

ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard GPS receiver or platform provided GPS compatible

Dual GPS heading support

  • Play

  • U.S. Army's Project Convergence 2022 Utilizes the HD80

    During one of the Convergence 2022 experiments, Textron's Aerosonde® carrying Trillium’s HD80-MV-600 and HD80-VV-510, located the target, activating rapid electronic warfare (EW) effects on radio frequency emitters, and successfully cross-cued through a mesh radio to the second Aerosonde and Trillium payload, without relying on GPS.

    Read More

  • JUMP 20 with the HD80 onboard, Awarded Increment 1 of the Future Tactical Unmanned Aircraft System (FTUAS) program

    With the capabilities of a vertical takeoff and landing, the JUMP 20 will be used to provide advanced multi-sensor intelligence, surveillance, and reconnaissance (ISR) services to the U.S. Army.

    See Details

Accessories

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
