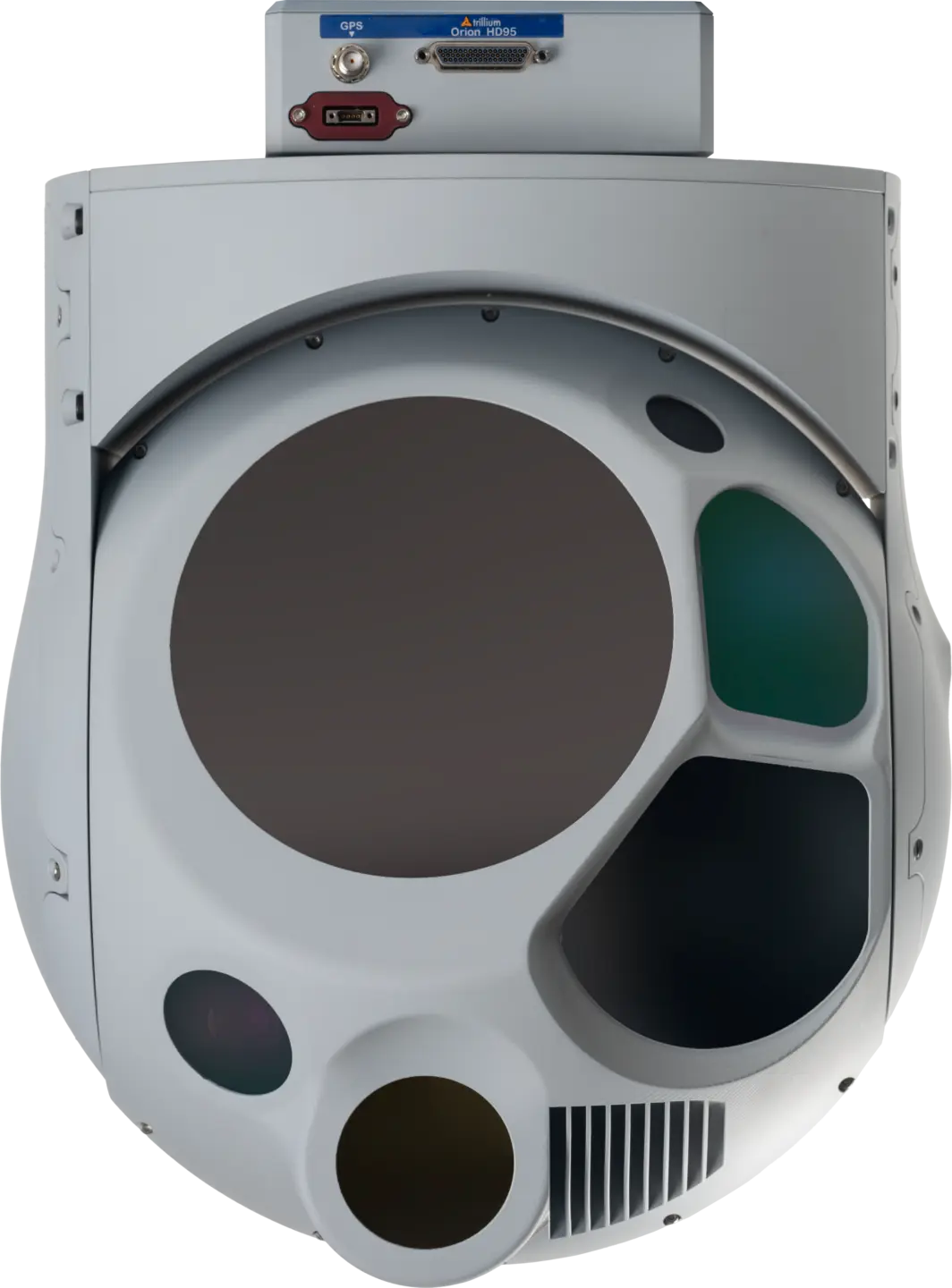

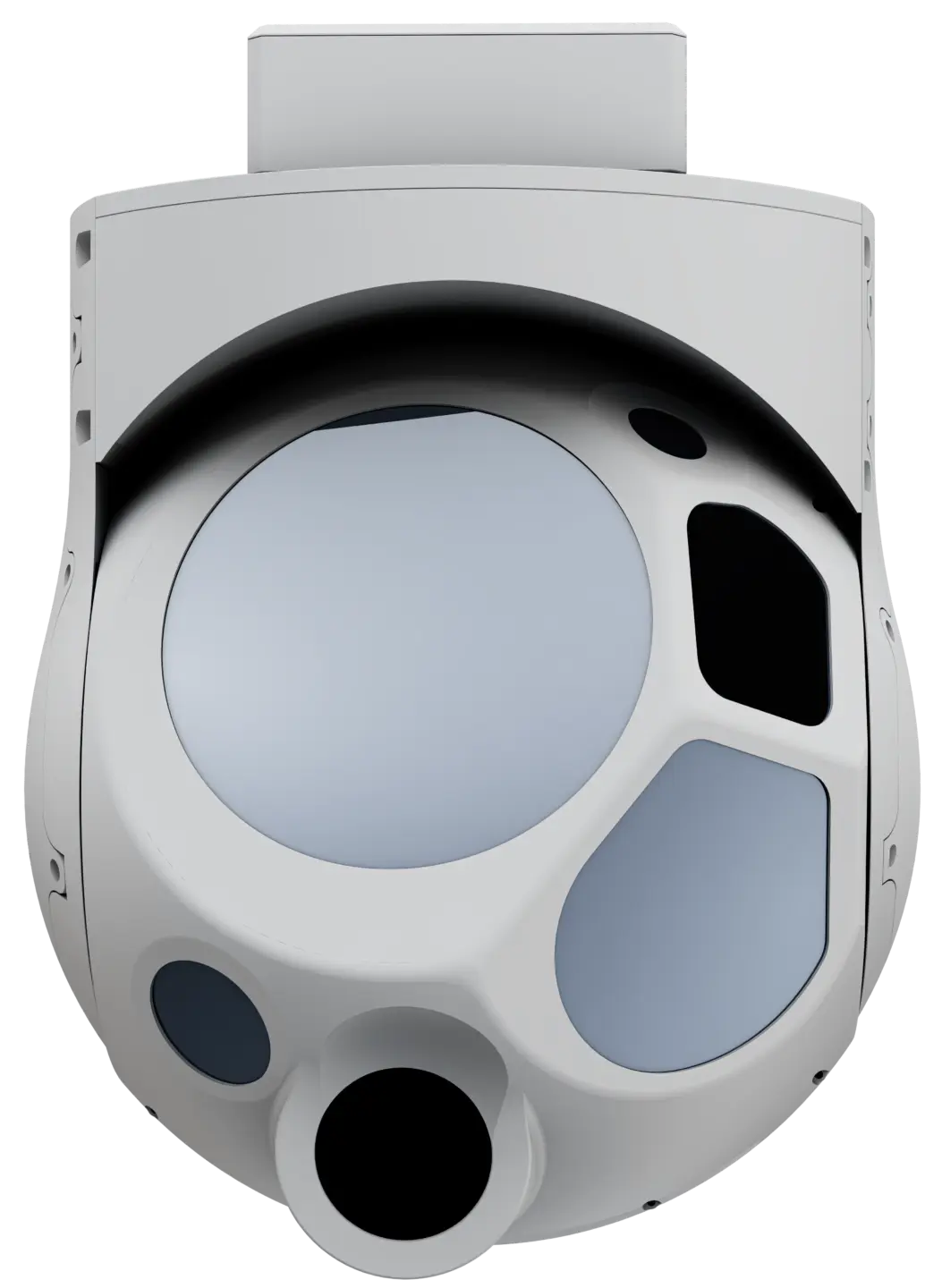

Equipped with a 132x visible zoom, 40x MWIR zoom, and a 1-degree FOV SWIR, this system offers powerful optics suited for any mission.
Size
Weight
Cameras
Power
Size (WxH) 254 x 330mm
Weight 7600g
Power 35W average, 100W peak consumption
Pan 360° Continuous
Tilt -80° to 75°
EO Visible 1280 x 720
FOV 40.4° - 1.2°
ZOOM 36X
IR MWIR 640 x 512
FOV 18.2° - 0.9°
ZOOM 20X
IR SWIR LTD See Spot
FOV 5.7°
ZOOM 1x
Encoding Onboard h.265 compression with adjustable bitrate
Stabilization Onboard electronic
Tracking Onboard scene and target tracking
Metadata MISB-compliant output including KLV metadata
Upgrades Field upgradeable software
Target Designator 50mJ/pulse power target designator, STANAG 3733 compliant
Range Finder 1550NM laser, class 1: eye safe; 4.5 km max range
Pointer 830nm laser, class IIIB, 190mW optical power
GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy
Real time geopointing and geolocation
Attitude, velocity and position computed at 200Hz
Onboard GPS receiver or platform provided GPS compatible
Dual GPS heading support
The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
