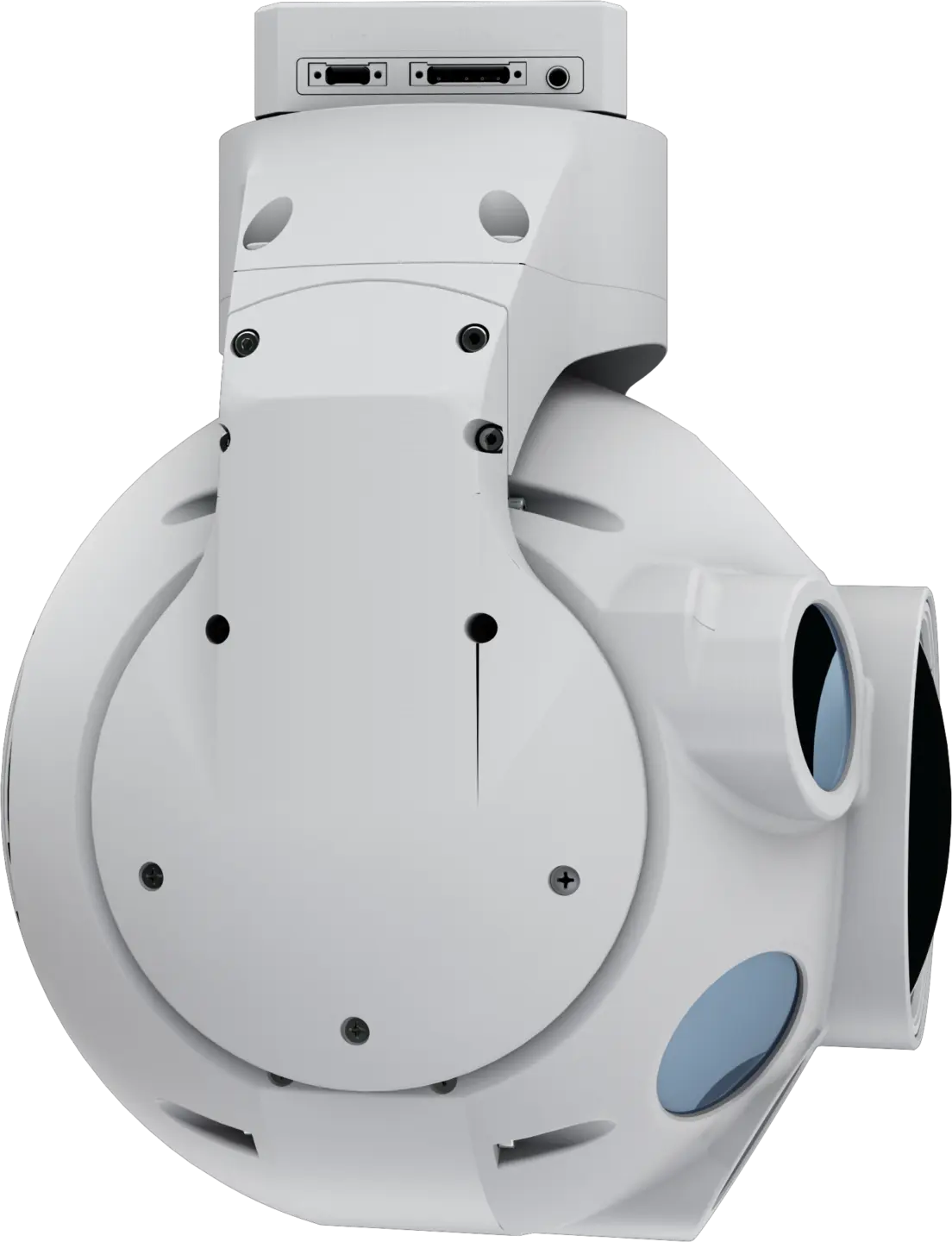

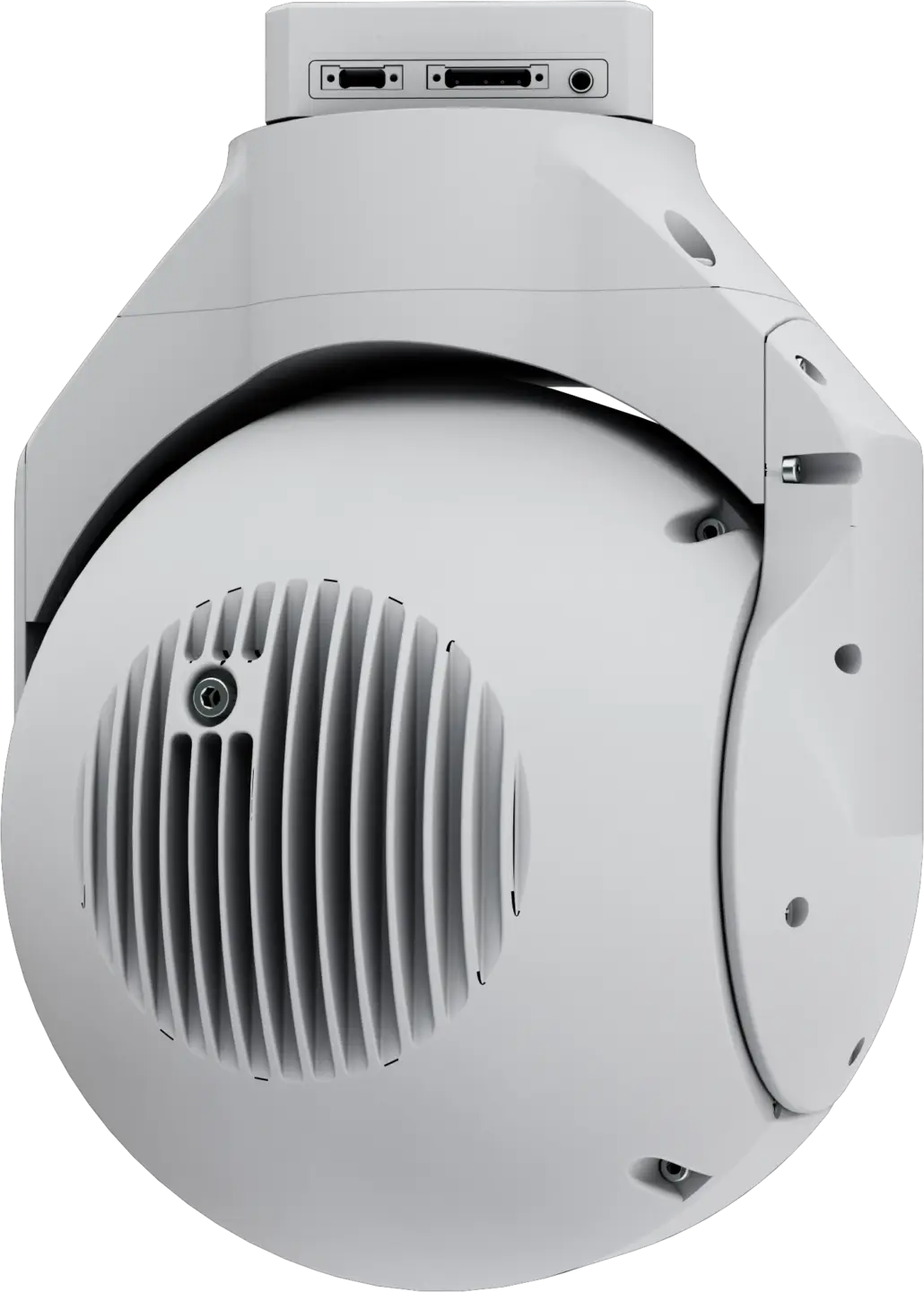

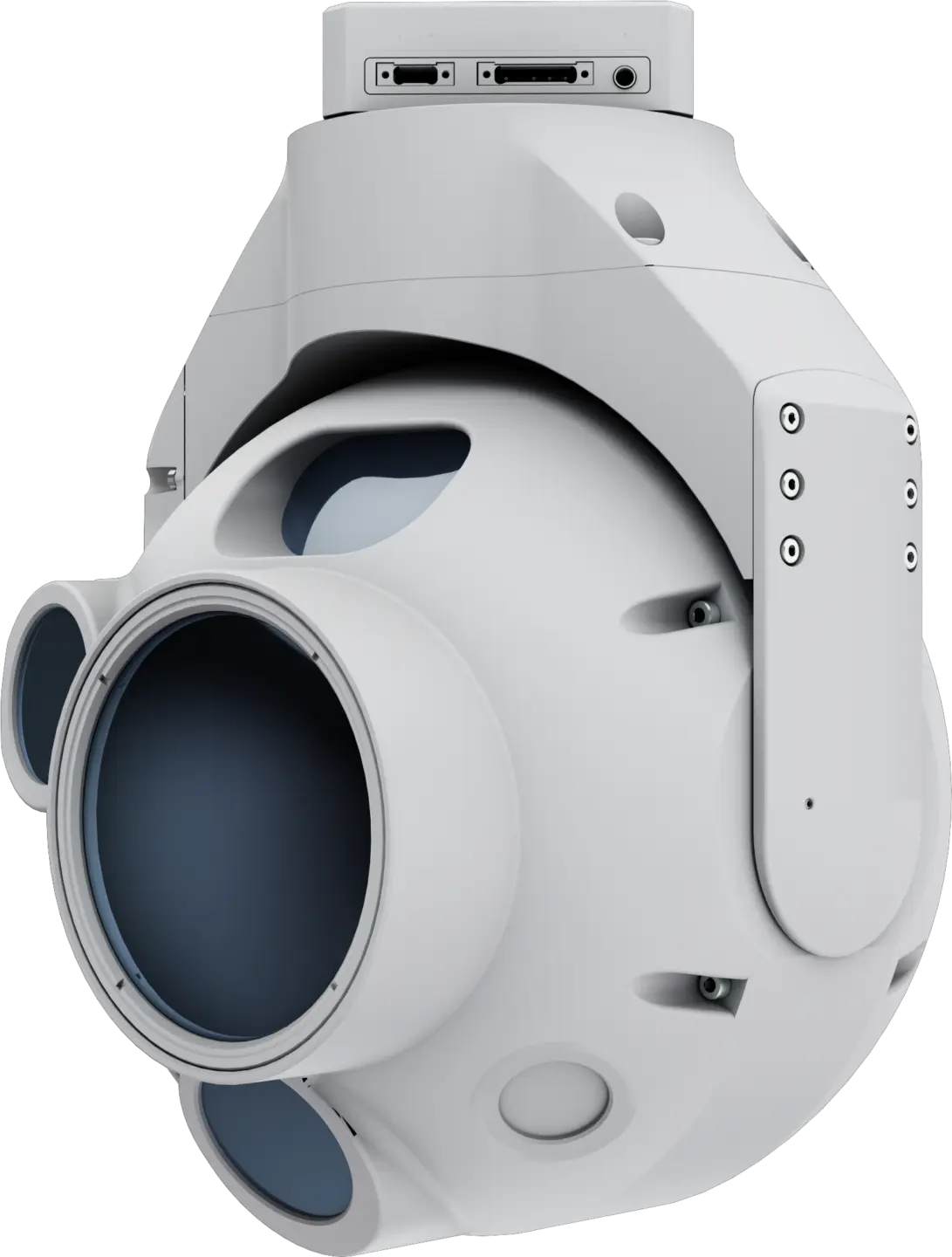

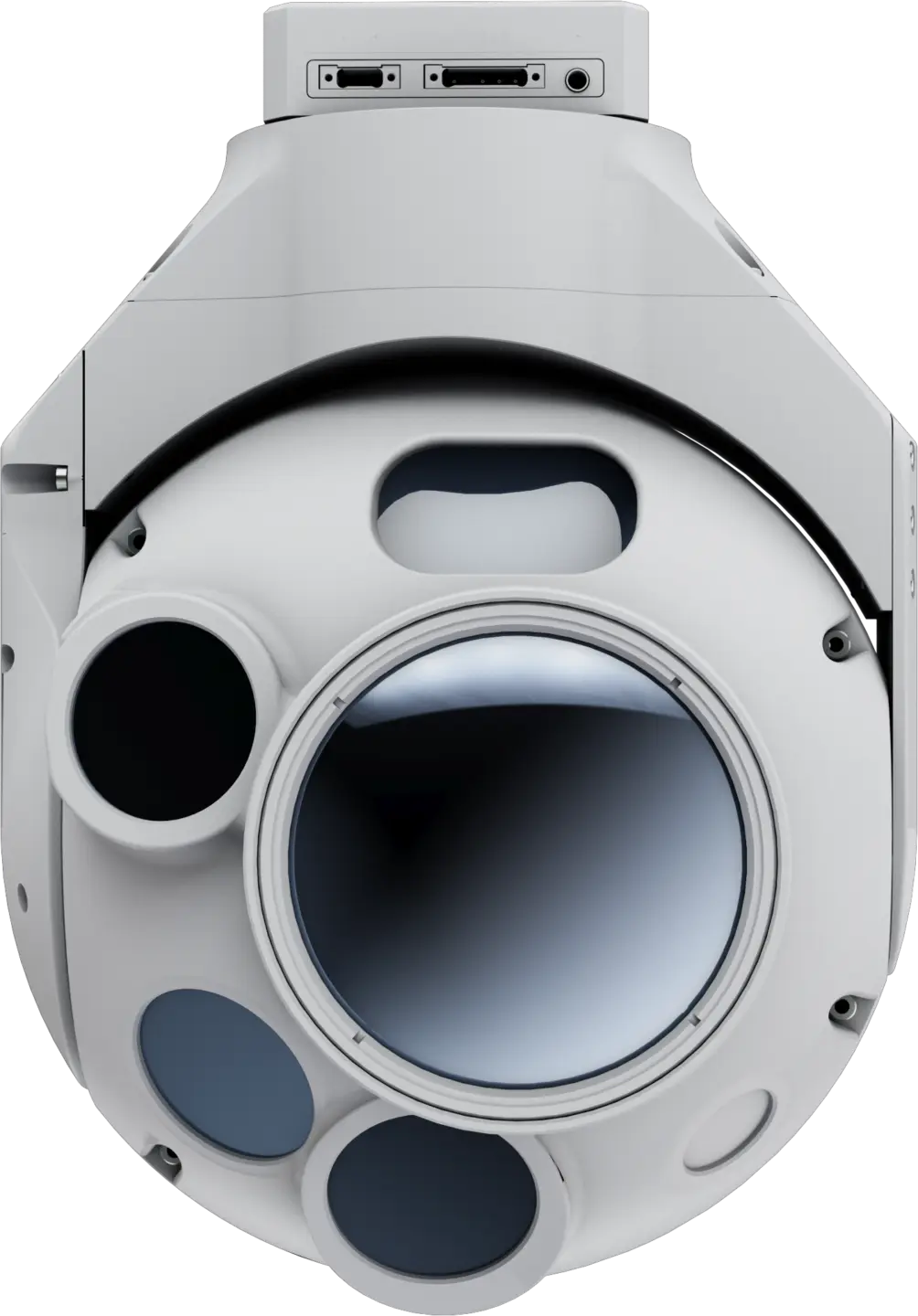

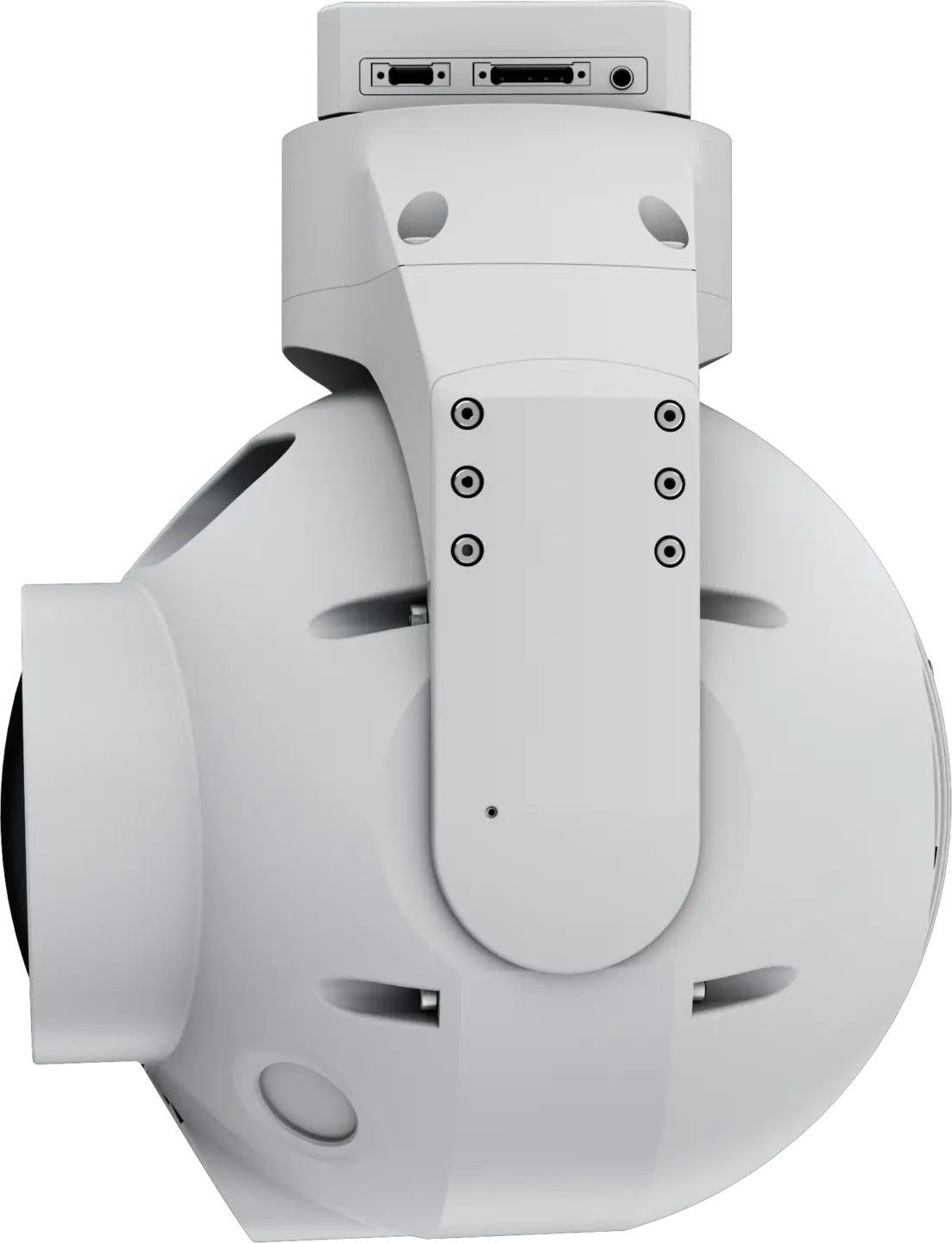

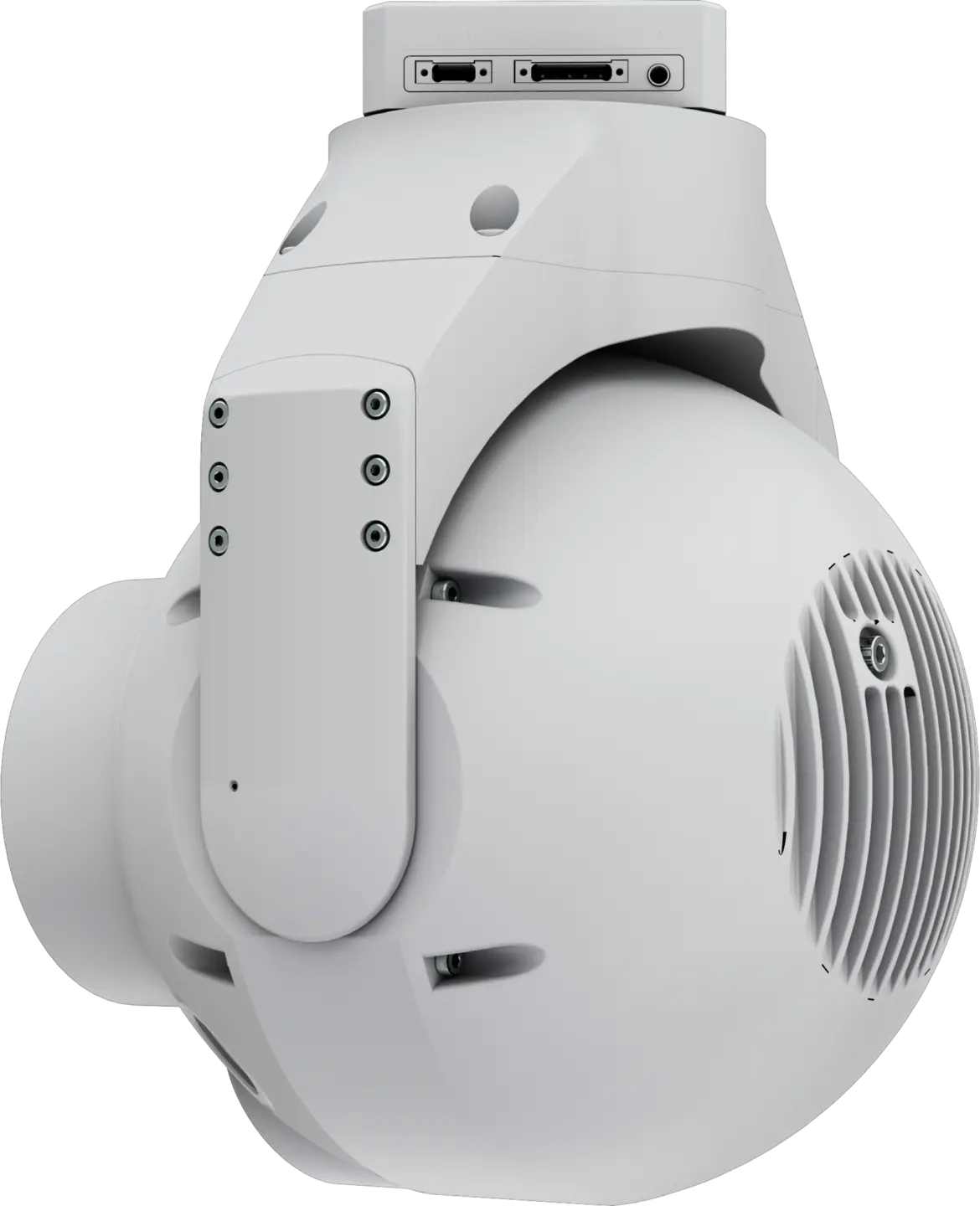

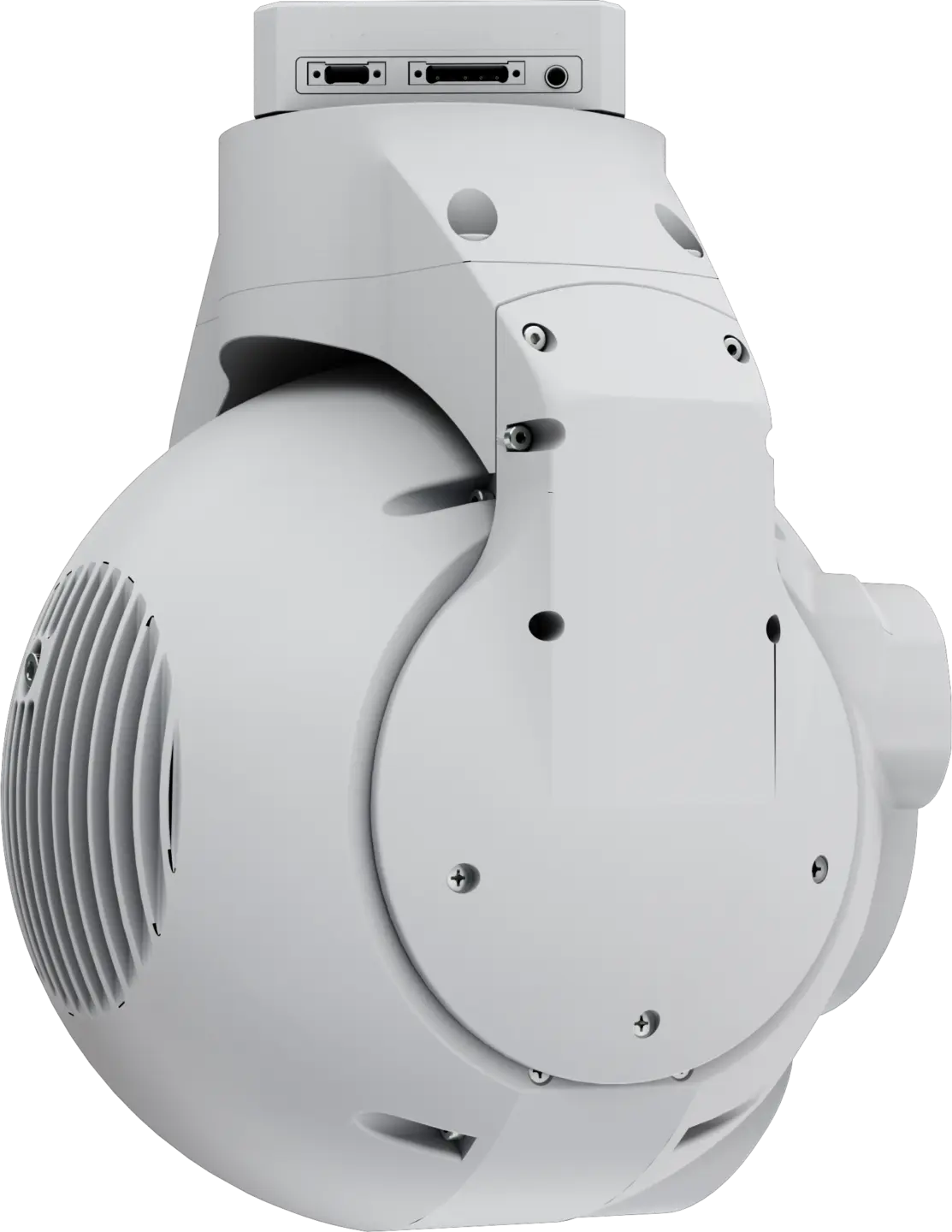

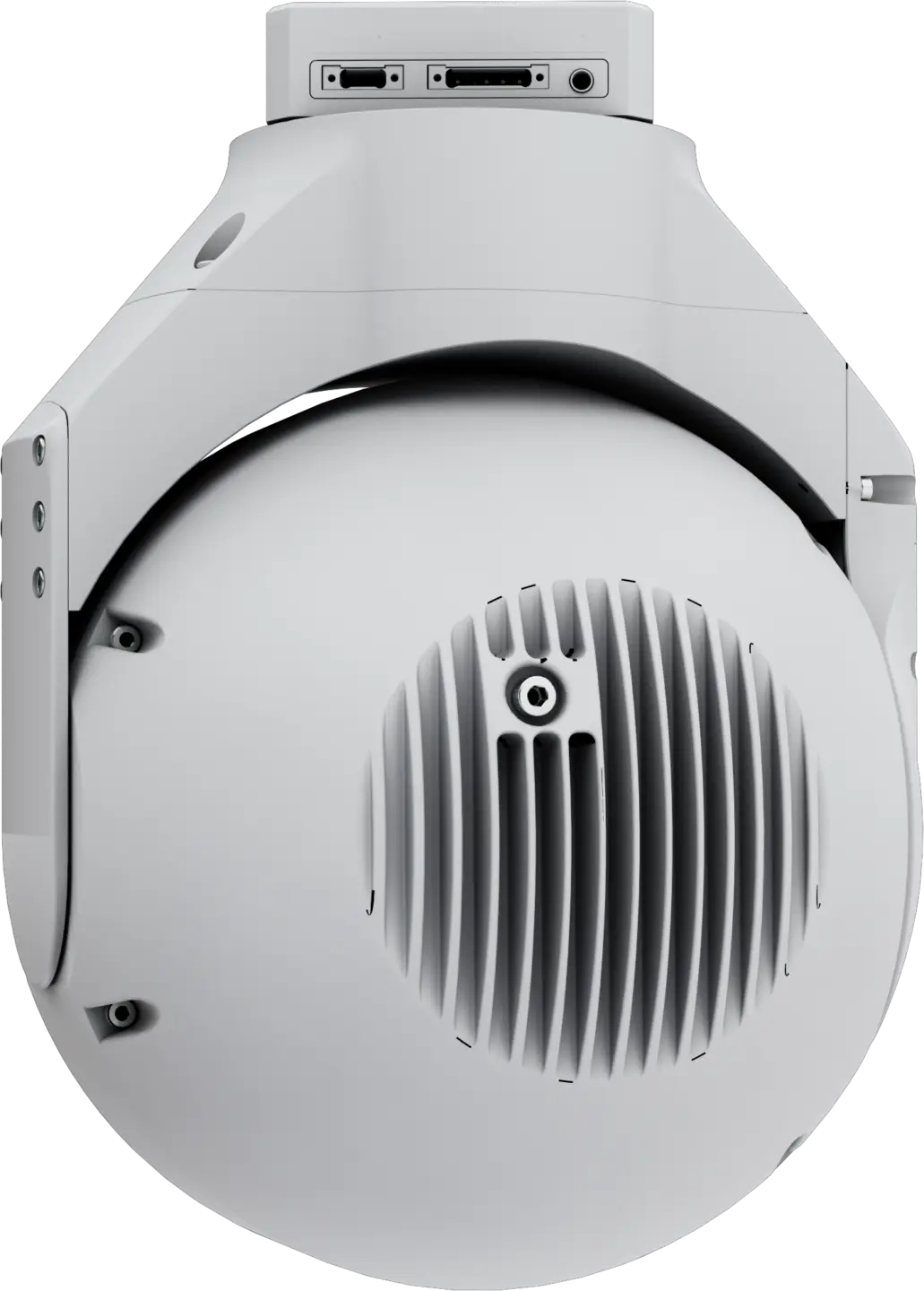

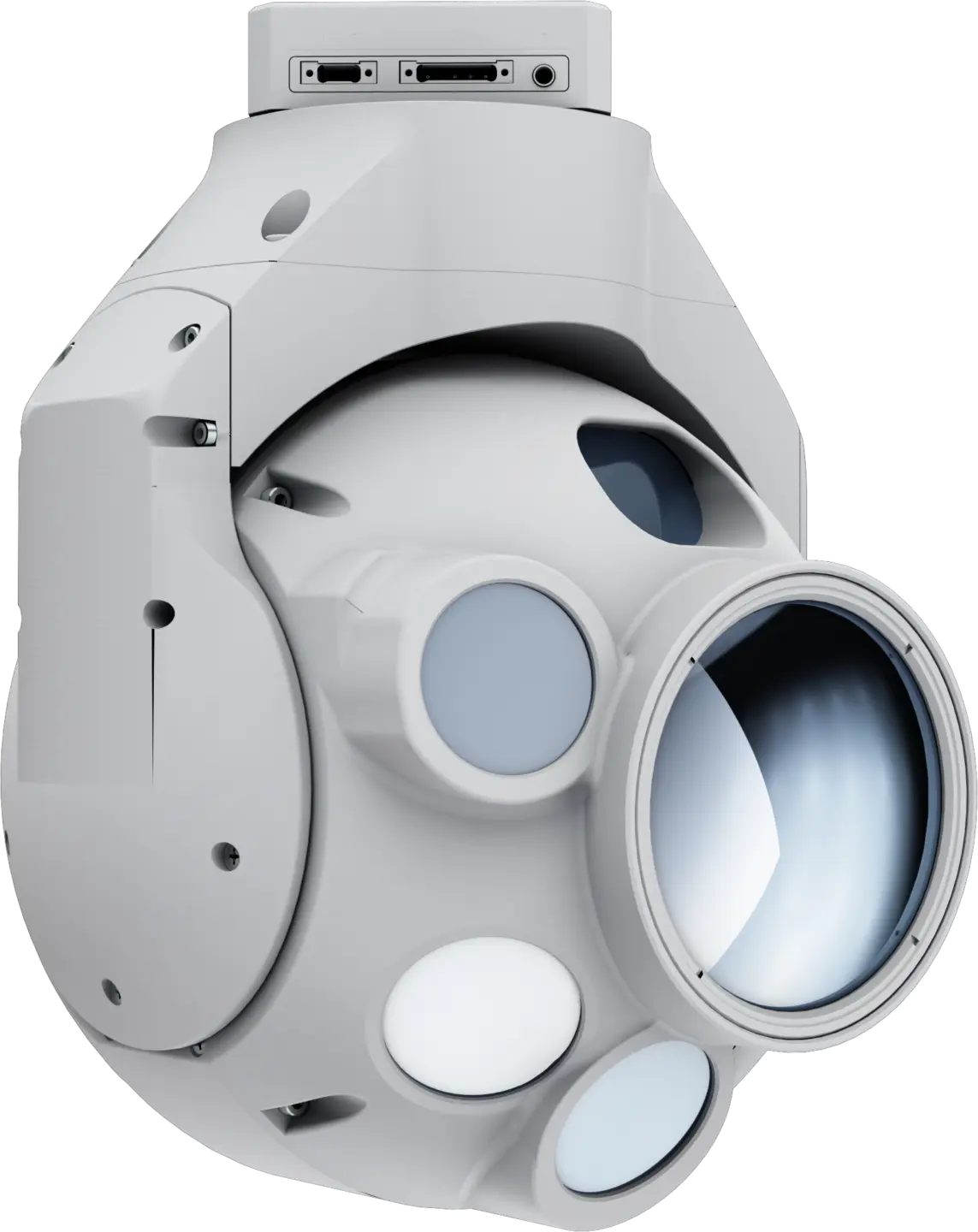

Cost-efficient MWIR, LWIR, and visible imaging with 180x visible zoom, integrated lasers, and onboard tracking and geolocation in a compact 4.4 lb system.
Size
Weight
Cameras
Power
Laser
Size (WxH) 147 x 202mm
Weight 2000g
Power 24VDC regulated input, external regulation accepting 10V to 30V available
Pan 360° Continuous
Tilt -80° to 27°
IR MWIR 640 x 512
FOV 20.2° - 0.8°
ZOOM 26X
IR LWIR 640 x 512
FOV 32° - 16°
ZOOM 2X
EO Visible 1920 x 1080
FOV 30.2° - 0.2°
ZOOM 180X
Pointer 830-850nm laser, Class IIIB, 50mW
Range Finder 1550nm Laser, Class I
Encoding Onboard h.264/h.265 compression with adjustable bitrate
Stabilization Onboard electronic
Tracking Onboard scene, geo, and target tracking
Metadata MISB-compliant output including embedded KLV metadata
Upgrades Field upgradeable software
GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy
Real time geopointing and geolocation
Attitude, velocity and position computed at 200Hz
Onboard GPS receiver or platform provided GPS compatible
Dual GPS heading support
The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
