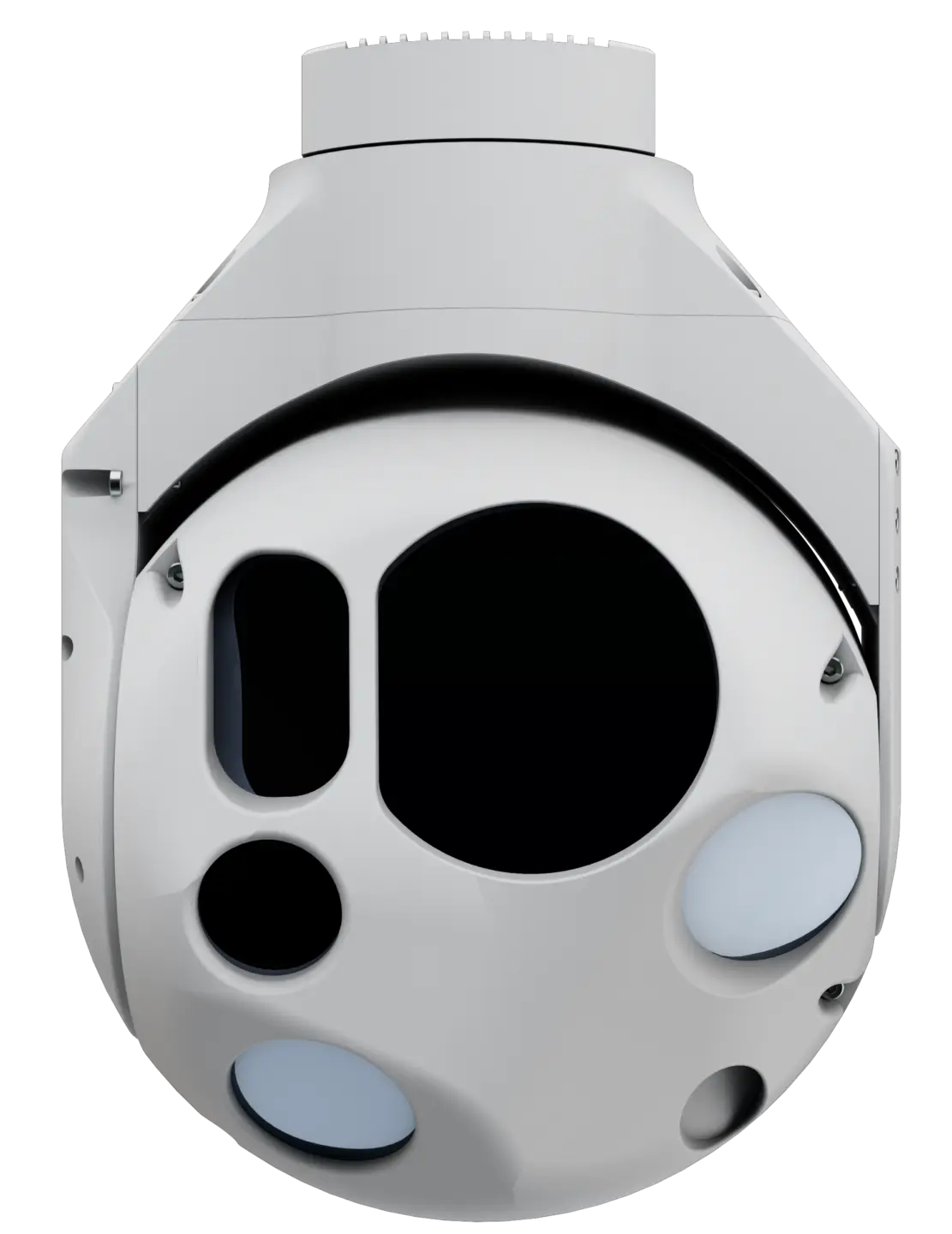

Designed for versatility, this dual EO system provides the option of MWIR or LWIR for visual data, aligning with diverse mission needs.
Size
Weight
Cameras
Power
Size (WxH) 147 x 202mm
Weight 1900g
Power 24VDC regulated input, external regulation accepting 10V to 30V available
Pan 360° Continuous
Tilt -80° to 35°
MWIR 640 x 512
FOV 21.7° - 1.1°
ZOOM 20X
LWIR 640 x 512
FOV 32° - 16°
ZOOM 2x
EO 1920 x 1080
FOV 45° - 0.3°
ZOOM 180x
Encoding Onboard h.265 compression with adjustable bitrate
Stabilization Onboard electronic
Tracking Onboard scene and target tracking
Metadata MISB-compliant output including KLV metadata
Upgrades Field upgradeable software
GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy
Real time geopointing and geolocation
Attitude, velocity and position computed at 200Hz
Onboard GPS receiver or platform provided GPS compatible
Dual GPS heading support
The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
