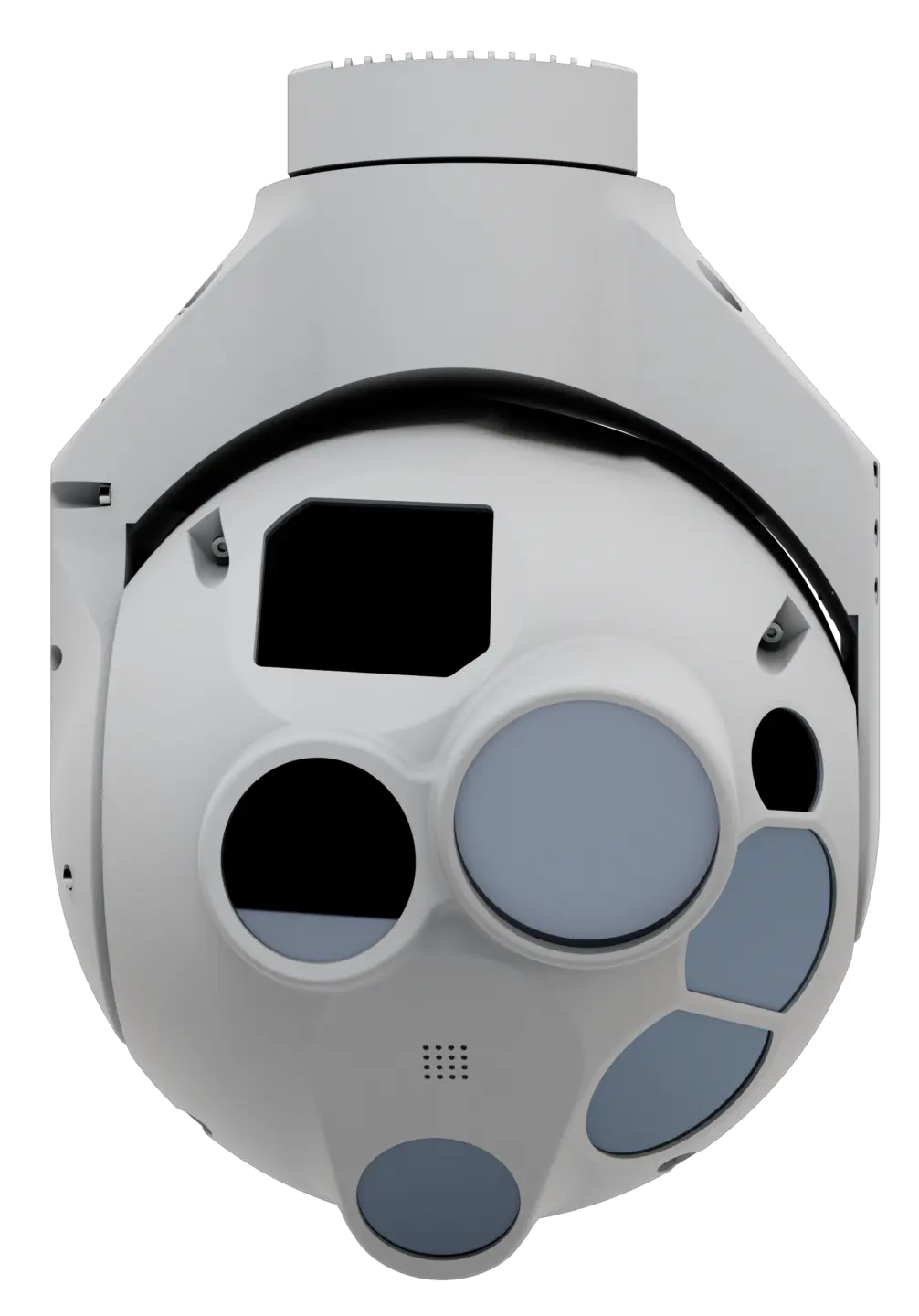

This is our most comprehensive design in just 4.5 lbs, featuring MWIR, LWIR, Visible, SWIR, and a full suite of laser options.
Size
Weight
Cameras
Power
Size (WxH) 147 x 202mm
Weight 1950g
Power 24VDC regulated input, external regulation accepting 10V to 30V available
Pan 360° Continuous
Tilt -80° to 35°
EO 1920 x 1080
FOV 16.9° - 0.6°
ZOOM 30x
MWIR 1280 x 1024
FOV 5.6° - 1.4°
ZOOM 4x
LWIR 640 x 512
FOV 18.2° - 9.1°
ZOOM 2x
SWIR 640 x 512
FOV 5.7° - 2.9°
ZOOM 2x
Encoding Onboard h.264 compression with adjustable bitrate
Stabilization Onboard electronic
Tracking Onboard scene tracking
Metadata MISB-compliant output including KLV metadata
Upgrades Field upgradeable software
GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy
Real time geopointing and geolocation
Attitude, velocity and position computed at 200Hz
Onboard GPS receiver or platform provided GPS compatible
Dual GPS heading support
The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
