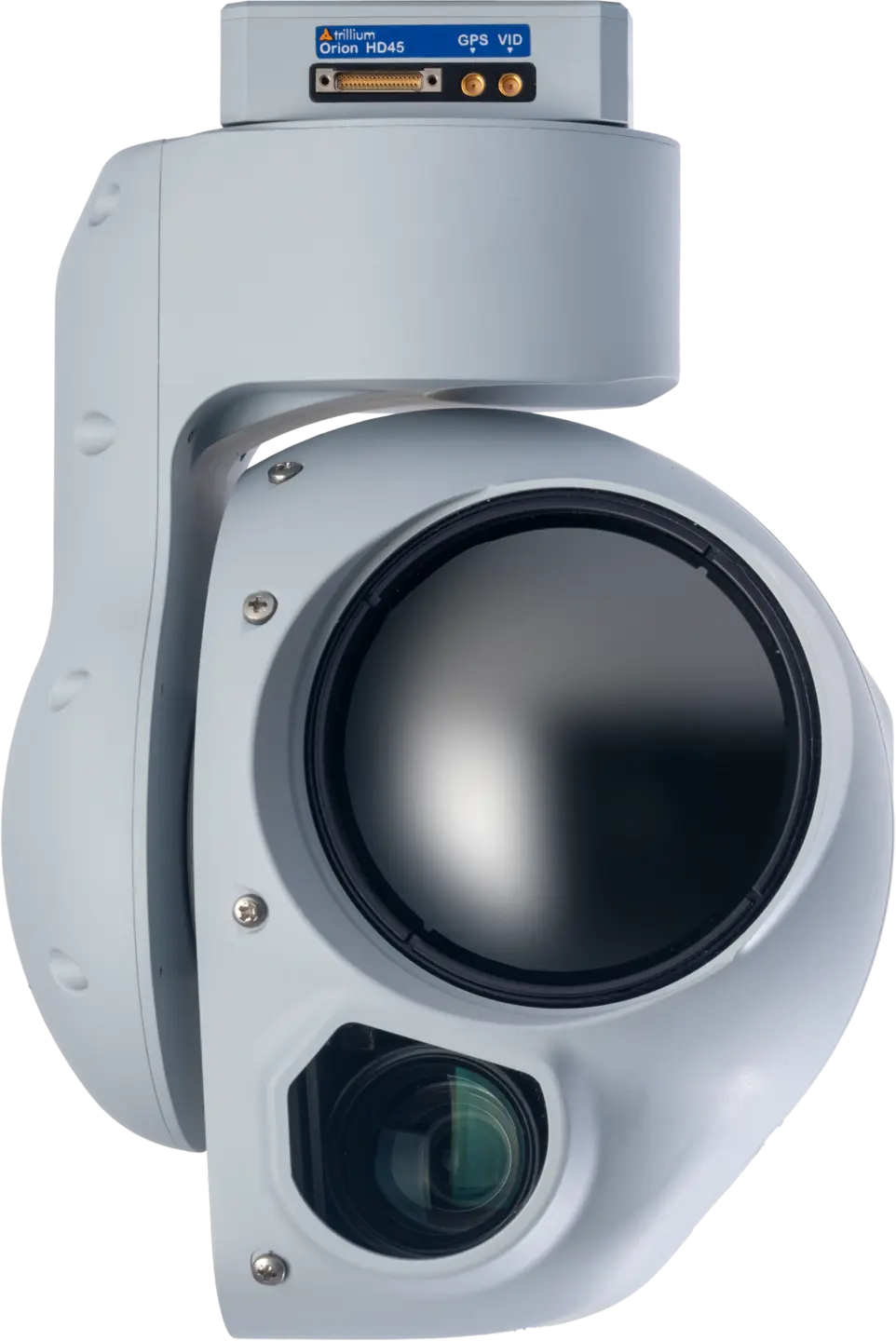

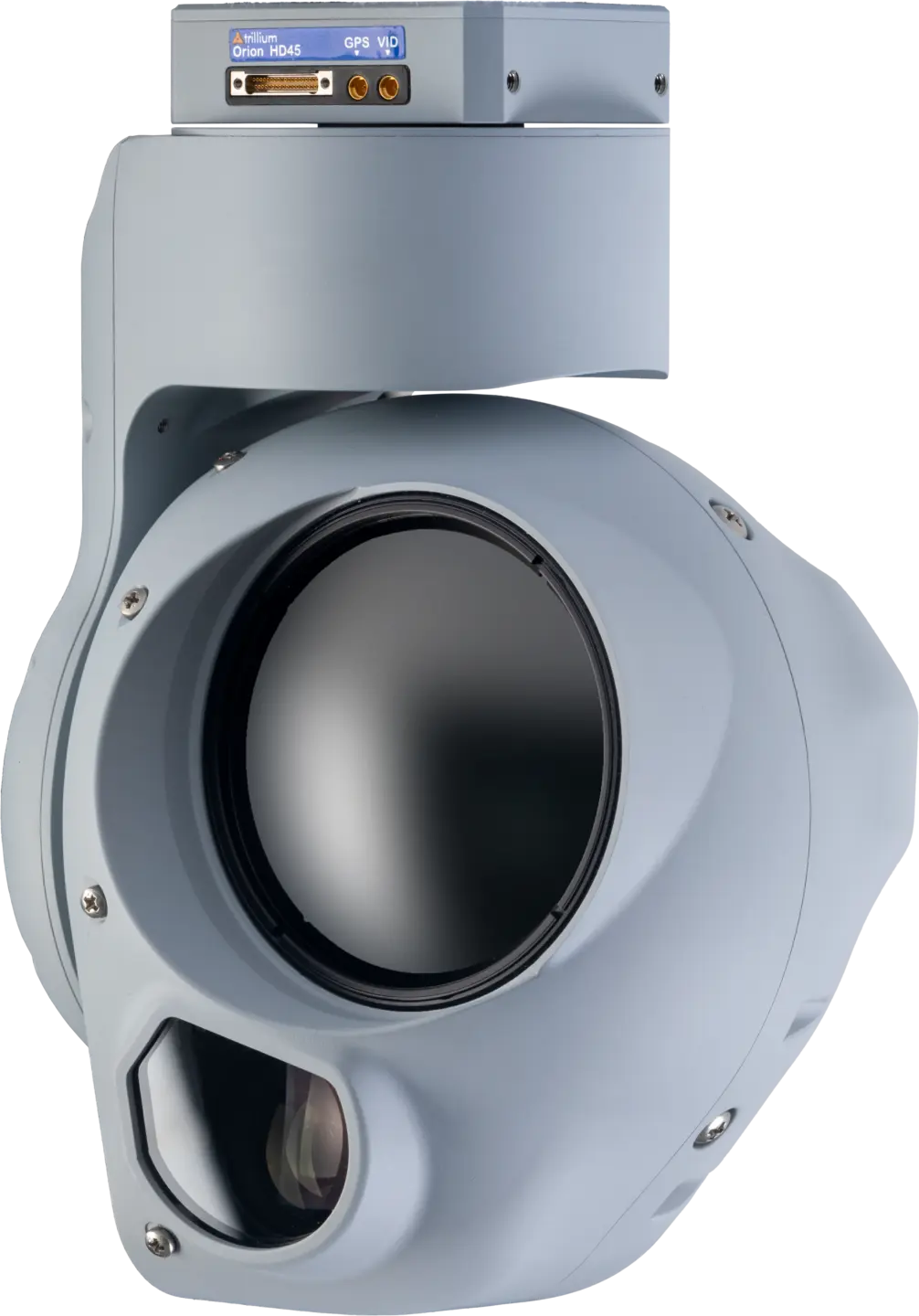

HD45

CAM: 35.3992 -120.6111 ALT 444 m FOV 2.°
IMG: 35.3993 -120.6126 ALT 30 m RNG 63 ft

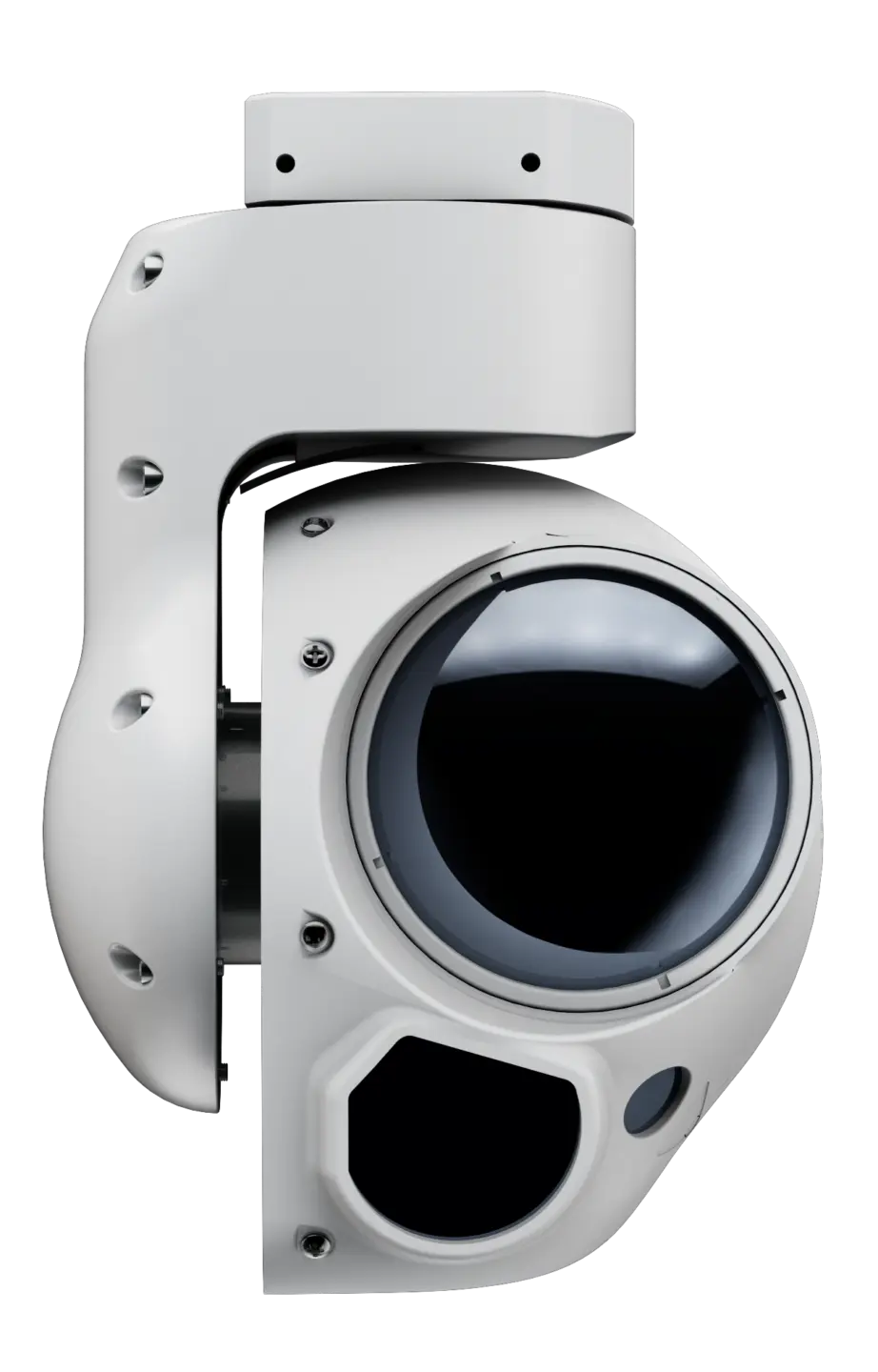

HD45 - LV-CZ-GS

Features continuous zoom LWIR and a global shutter EO for constant visual capture

Download Datasheet Request Info
Size
133 x 197mm
Weight
1350g
Cameras
EO, LWIR
Power
15W average, 75W peak consumption. 24VDC regulated input

SWaP

Size (WxH) 133 x 197mm

Weight 1350g

Power 15W average, 75W peak consumption. 24VDC regulated input

Pan 360° Continuous

Tilt -80° to 42°

DAY/NIGHT OPTICS

EO Visible 1280 x 720

FOV 46.8° -1.2°

ZOOM 40X

IR LWIR 640 x 512

FOV 29° - 3°

ZOOM 10X

SOFTWARE

Encoding Onboard h.264 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software

ONBOARD GPS

GPS/INS IMU co-located with cameras.

1.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard GPS receiver or platform provided GPS compatible

Dual GPS heading support

  • Play

  • The HD45 selected for Anduril's Ghost, An Intelligent VTOL Group II sUAS

    This high-performance, 4.5-inch class stabilized EO/IR camera system is ideal for real-time intelligence and reconnaissance missions.

    Learn More

  • ArgenTech Soultions uses the HD45 EO/IR camera onboard their FireEye UAS

    The HD45 EO/IR camera provides real-time fire line visual and infrared mapping while checking for new fires caused by lightning. The use of UAS provides the fire service a unique tool to help reduce the risk for manned aviation assets when visibility is severely degraded.

    Learn More

Accessories

  • External regulator

    External Regulator

    The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

  • Accessory Image Not Available

    HD40/45 Retract

    A retract is often used to protect the HD40/45 during take off and landing. The retract is controlled through SkyLink and is powered by the same 24V rail as the gimbal.
