HD25

CAM: 35.3992 -120.6111 ALT 444 m FOV 2.°
IMG: 35.3993 -120.6126 ALT 30 m RNG 63 ft

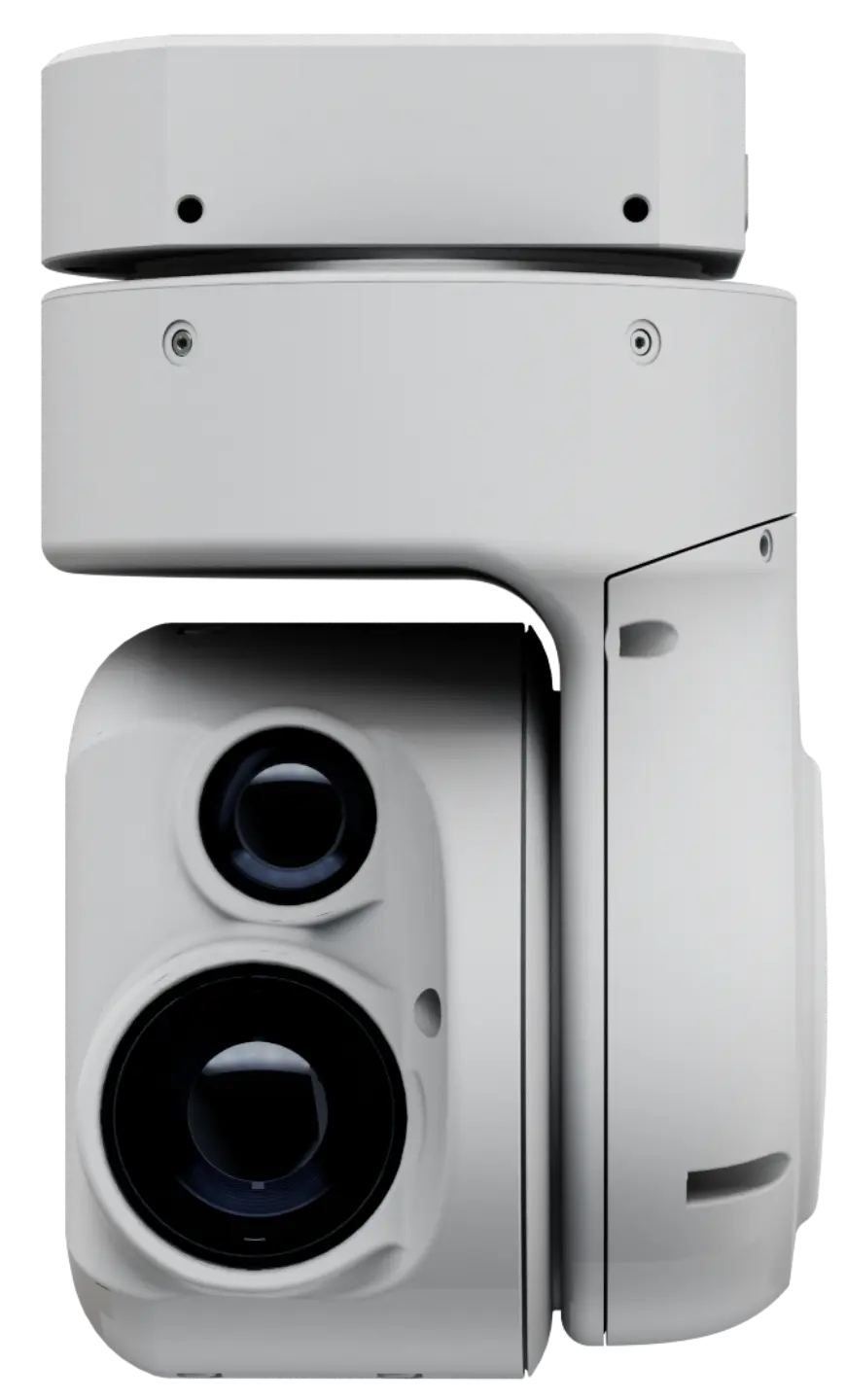

HD25 - LV-C

A streamlined dual sensor system utilizing a 12x EO zoom and 3x zoom LWIR.

Download Datasheet Request Info
Size
71 x 109mm
Weight
390g
Cameras
EO, LWIR
Power
10W average, 75W peak power consumption

SWAP

Size (WxH) 71 x 109mm

Weight 390g

Power 10W average, 75W peak consumption. 24VDC regulated input

Pan 360° Continuous

Tilt -80° to 46°

DAY/NIGHT OPTICS

EO Visible 1280 x 720 LWIR 640 x 512

FOV 13.7° - 1.2° 24.1° - 12.1°

Zoom 12X (3x+4x) 2X (1x+2x)

SOFTWARE

Encoding Onboard h.264 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene tracking

Metadata MISB-compliant output including embedded KLV metadata

Upgrades Field upgradeable software

ONBOARD GPS

GPS/INS IMU co-located with cameras 1.5° (typical) total system accuracy Real time geopointing and geolocation Uses platform provided GPS

  • Play

  • Albers Aerospace Uses the HD25 Onboard their Sandstorm UAS

    The Sandstorm UAS program was developed to provide the US Air Force (or any UAV operator) with a cost-conscious training alternative to using full-sized (and expensive) operational UAVs. This Group 2 UAS requires a feature-rich imaging system gimbal that is light, powerful, and mission proven.

    Read More

Accessories

  • External regulator

    External Regulator

    The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

  • HD25 Retract

    HD25 Retract

    A retract is often used to protect the HD25 during landing. The retract is controlled through SkyLink and powered by the same 24V rail as the gimbal.
