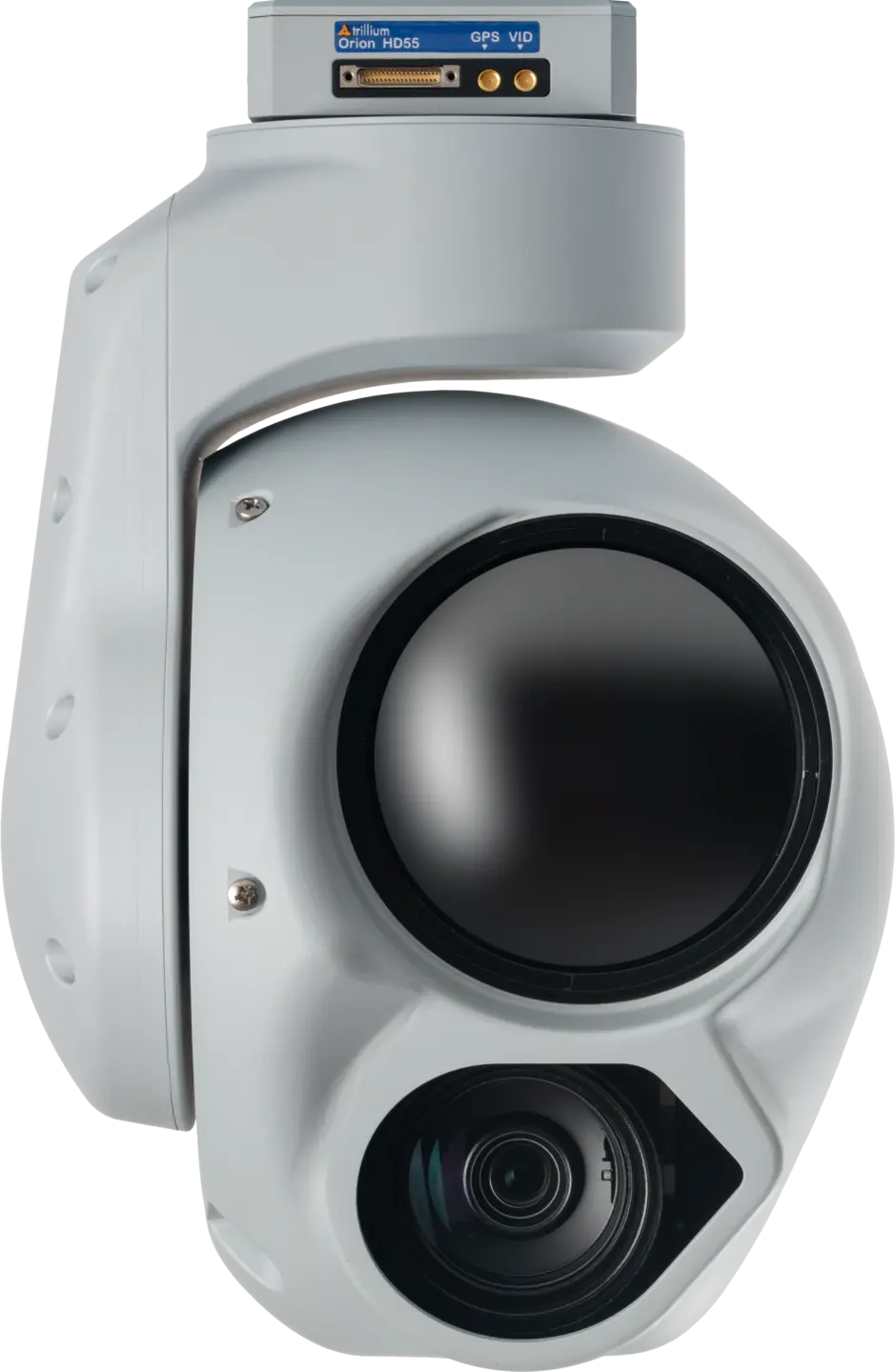

HD55 - LVV-CZ

This system features a dual visible configuration and continuous zoom IR for seamless visual data.

Download Datasheet Request Info
Size
140 x 208mm
Weight
1550g
Cameras
EO/EO LWIR
Power
24VDC regulated input, external regulation accepting 10V to 30V available

SWaP

Size (WxH) 140 x 208mm

Weight 1660g

Power 24VDC regulated input, external regulation accepting 10V to 30V available

Pan 360° Continuous

Tilt -80° to 65°

DAY/NIGHT OPTICS

EO 1 1280 x 720

FOV 47.7° - 0.4°

ZOOM 112X

EO 2 1280 x 720

FOV 41.3° - 3.8°

ZOOM 12x

LWIR 640 x 512

FOV 29° - 3°

ZOOM 10x

SOFTWARE

Encoding Onboard h.265 compression with adjustable bitrate

Stabilization Onboard electronic

Tracking Onboard scene and target tracking

Metadata MISB-compliant output including KLV metadata

Upgrades Field upgradeable software

ONBOARD GPS

GPS/INS IMU co-located with cameras. 0.5° (typical) total system accuracy

Real time geopointing and geolocation

Attitude, velocity and position computed at 200Hz

Onboard GPS receiver or platform provided GPS compatible

Dual GPS heading support

  • Play

  • Lockheed Martin selects the HD55-MV for its Stalker UAS

    Designed for use on Group 2 and smaller Group 3 UAS, the HD55-MV employes electro-optical (EO) and cryogenically cooled mid-wave infrared (MWIR) cameras, as well as an onboard image processor – all in a gimbal just 5.5 inches in diameter and weighing 1780 grams.

    Get Details

Accessories

  • Development Kit Trillium Engineering

    Development Kit

    The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
